LUMEL new products from the Official Authorized Distributor CMA D. ARGOUDELIS & CO S.A.!
The KD6 recorder is designed to measure, visualize and control the parameters of technological processes in various branches of industry.
It can be used as a data collection station in measurement and control systems or as an autonomous measuring and recording device.
Characteristics:

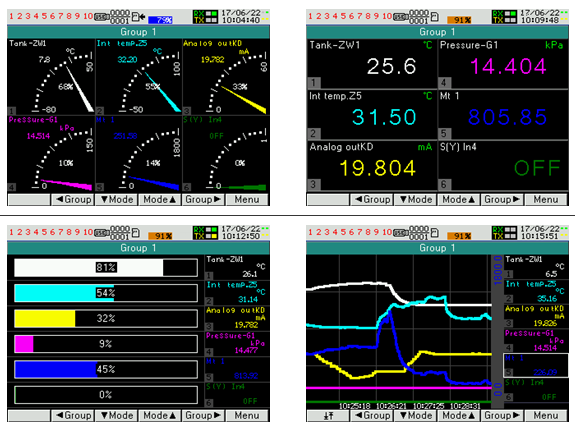

Easy and intuitive servicing based on the graphical Windows 3.5″ TFT type colour LCD display,
Up to 60 logical channels (max. up to 8 analog channels),
Input :
Measuring Programmable (0,4 or 8)
Binary (0,4 or 8)
Modbus RTU Master (10 devices, 10 registers each)
Output :
Relay (0, 4, 6, 8 or 12)
Analog (0, 4 or 8)
Auxiliary power supply 24V d.c. / 30mA
Supply voltage : 85…253V a.c., 90…300V d.c. or 20…60V d.c.
Depending on needs, the user has the choice of following communication interfaces: RS-485 MODBUS (Master and Slave) ,ETHERNET (MODBUS TCP/IP, WWW, FTP, NTP,DHCP), USB Host 2.0.
Possibility to exchange of configuration data between the recorder and PC through the USB interface,
Internal memory 8 GB.
Server WWW allows you to view the current state of the recorder through any web browser,
Advanced mathematical functions on measured values,
Archiving and visualisation of measuring data transmitted to KD6 from external devices via RS-485 MODBUS .
External dimension: 96 x 96 x 77 mm

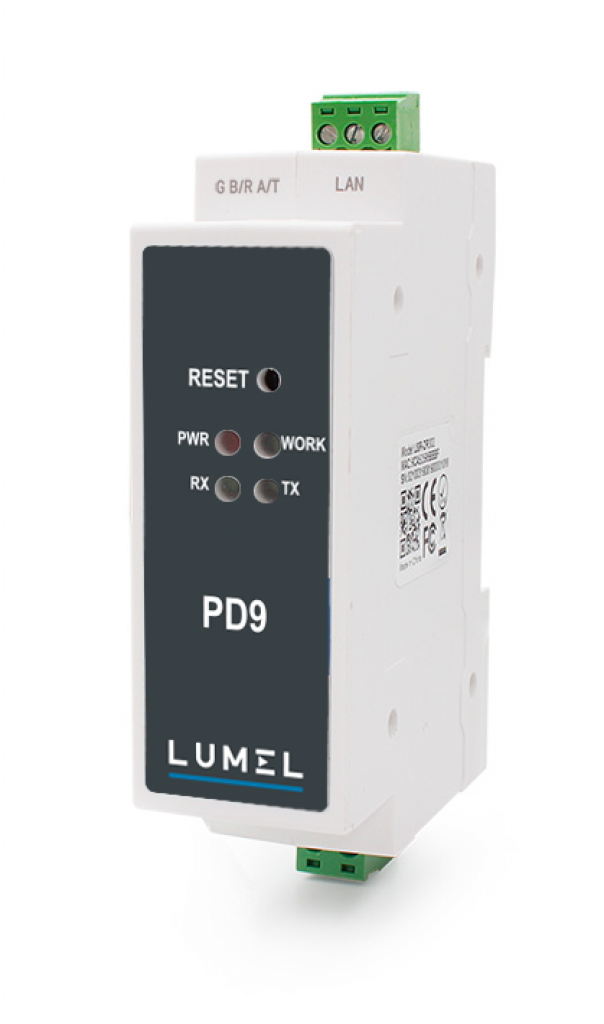

PD9 enables the access to devices with RS-485 interfaces for master devices and SCADA applications through the Ethernet network (independently of the communication protocol).Characteristics: -Two communication interfaces: 1x RS485, 1x Ethernet WAN/LAN -Simple configuration via webpage or tool software -Compact size designed for DIN rail mounting -Work modes: TCP server, TCP client, UDP server, UDP client -Support Modbus RTU to TCP, Modbus Polling -Support DHCP, dinamic or static IP -Watchdog function -Wide working temperature range from -40 to 85°C -Upgrade firmware via network
