ControlAir I/P Pressure Transducers with worldwide safety approvals from the Official Distributor in Greece CMA D. ARGOUDELIS & CO S.A.
I/P Transducers (Current to Pressure Transducers), also known as I/P Converters, convert a variable electrical signal to a linearly proportional pneumatic output. The pneumatic output is commonly used to apply pneumatic pressure to control valves, actuators, dampeners and louvers clutches and brakes, and web tensioners.
I/P Transducers are offered with extensive combinations of inputs and outputs, industry certifications (FM, CSA, ATEX) and Explosion-proof housings. I/P Transducers are available in various mounting options for space constrained applications. Explosion-proof I/P Transducers deliver reliable high performance for the toughest applications in the most hazardous environments. The NEMA 4X (IP65) housing is designed for both Intrinsically Safe and Explosion-Proof operation.

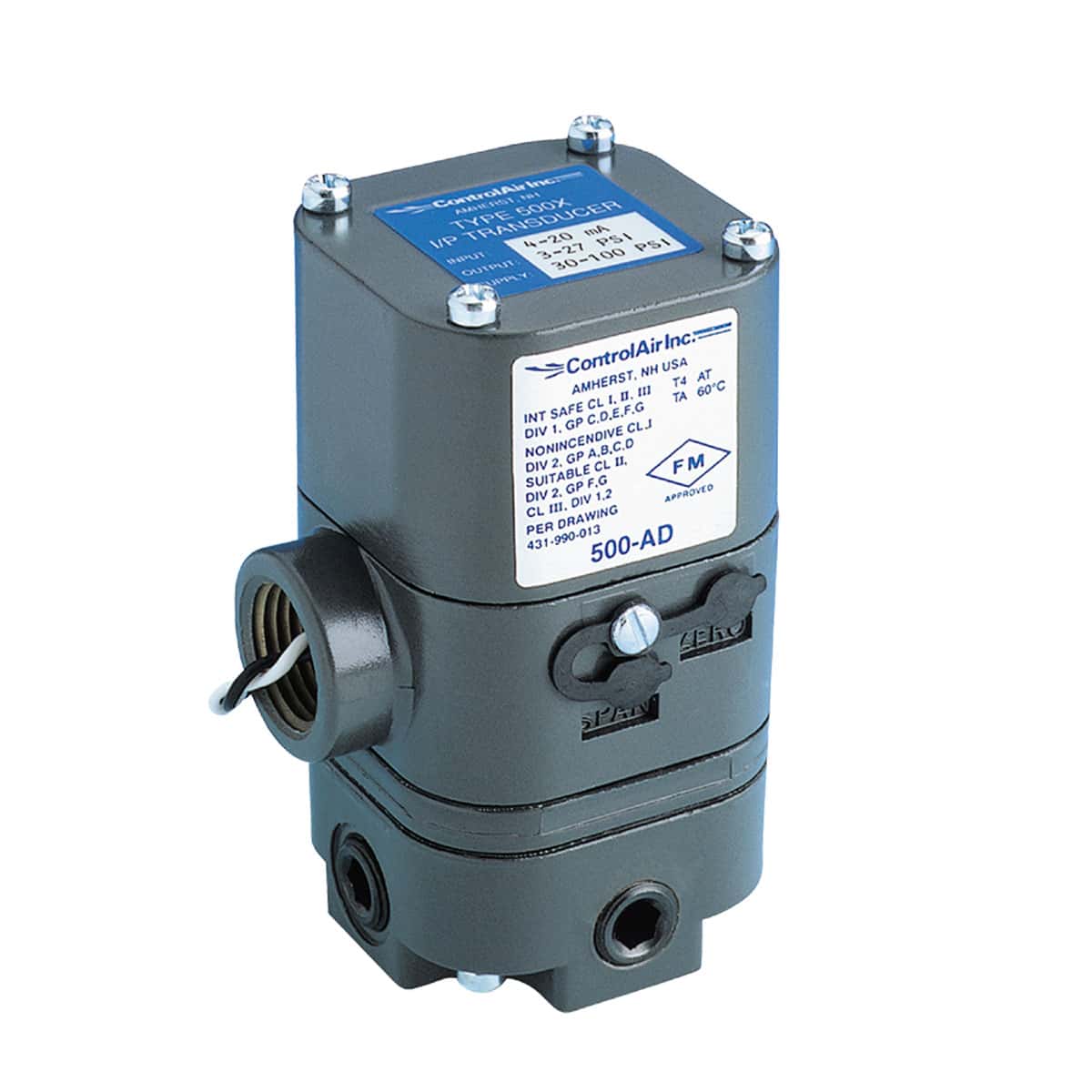

The ControlAir Type 500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost.

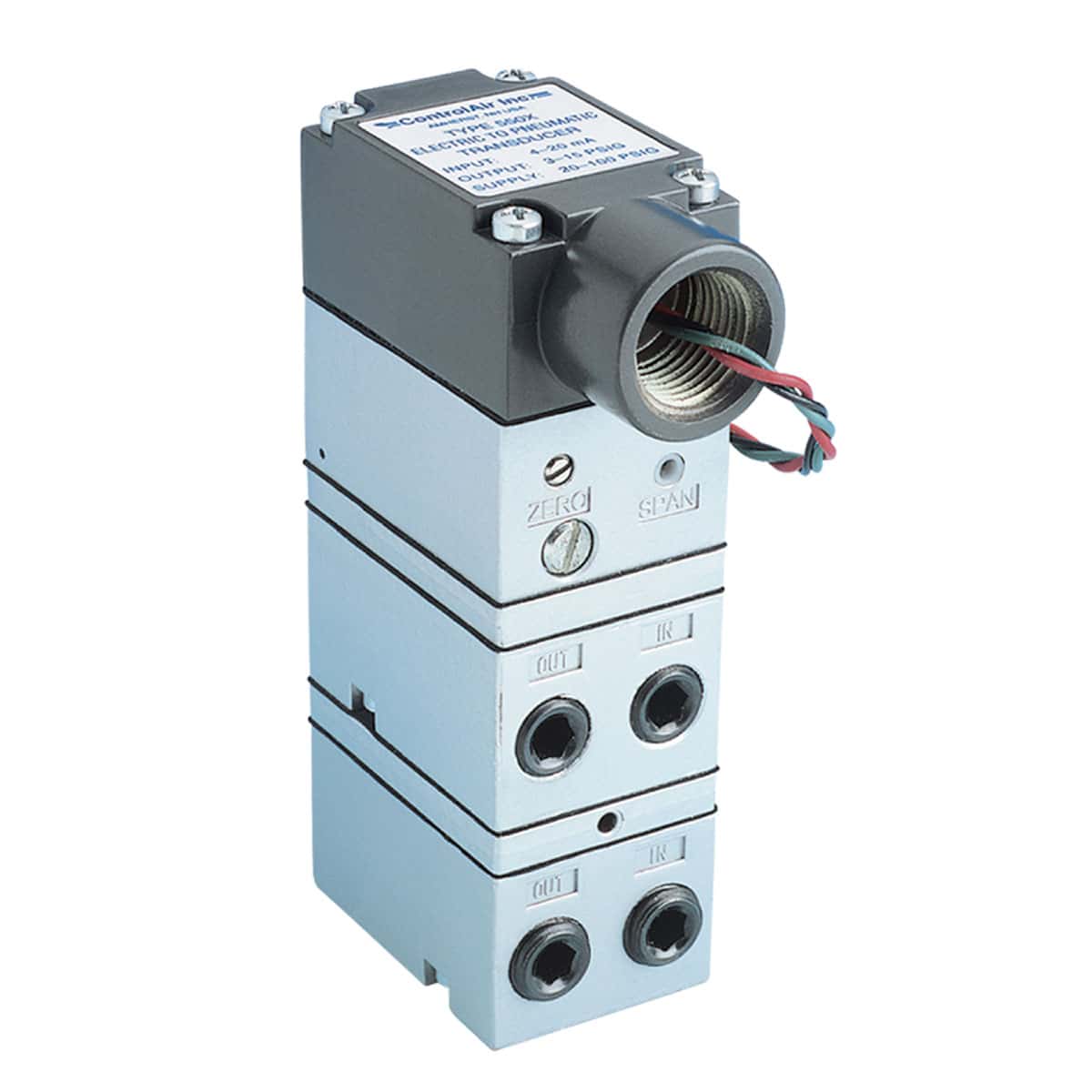

The Type 550X is an electronic pressure regulator that converts a variable signal (current or voltage) to a proportional pneumatic output. Its compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained.

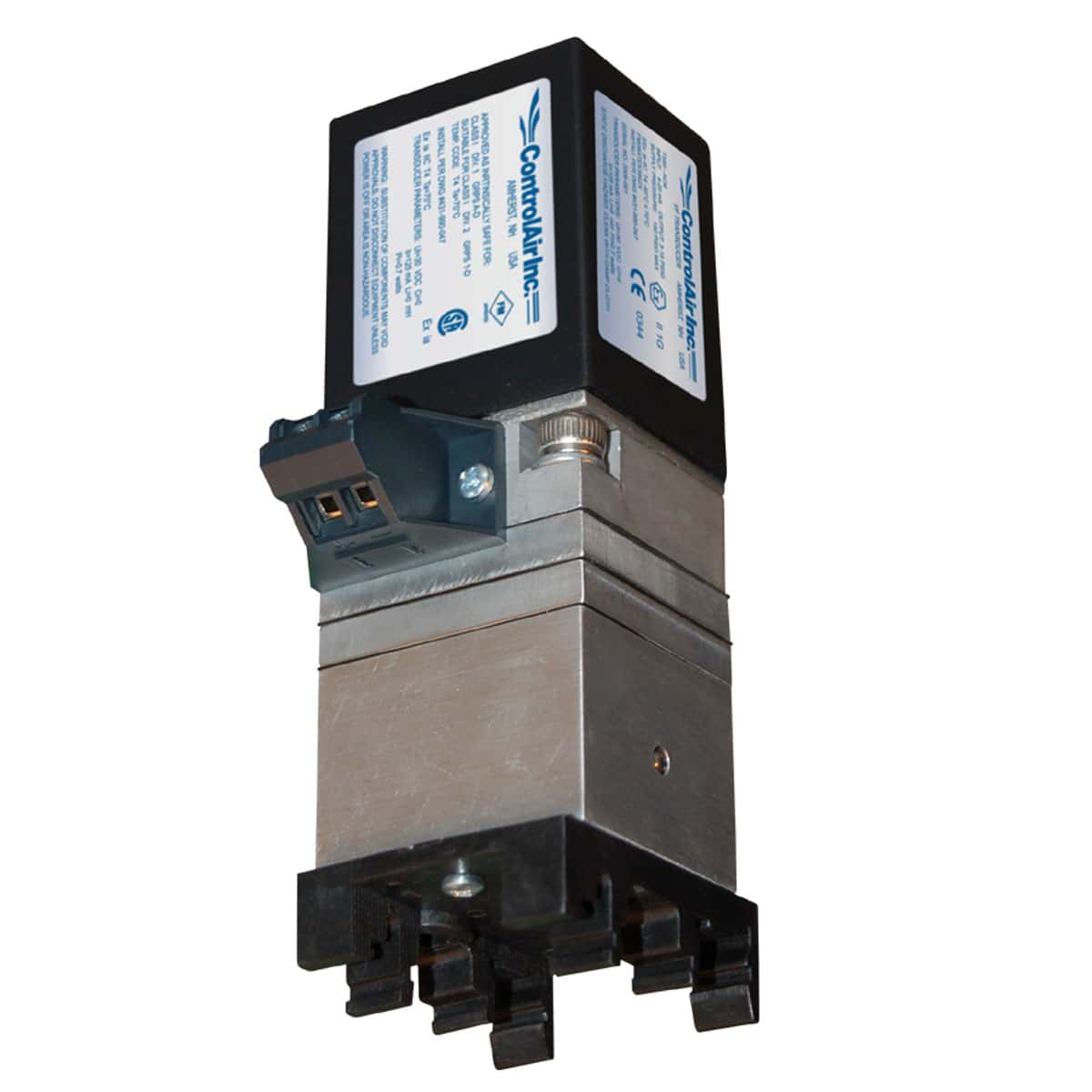

The Type 590X I/P (current to pressure) transducer converts a variable electrical signal to a linearly proportional pneumatic output. The small size, light weight and immunity to shock and vibration make it ideal for use in process control applications.

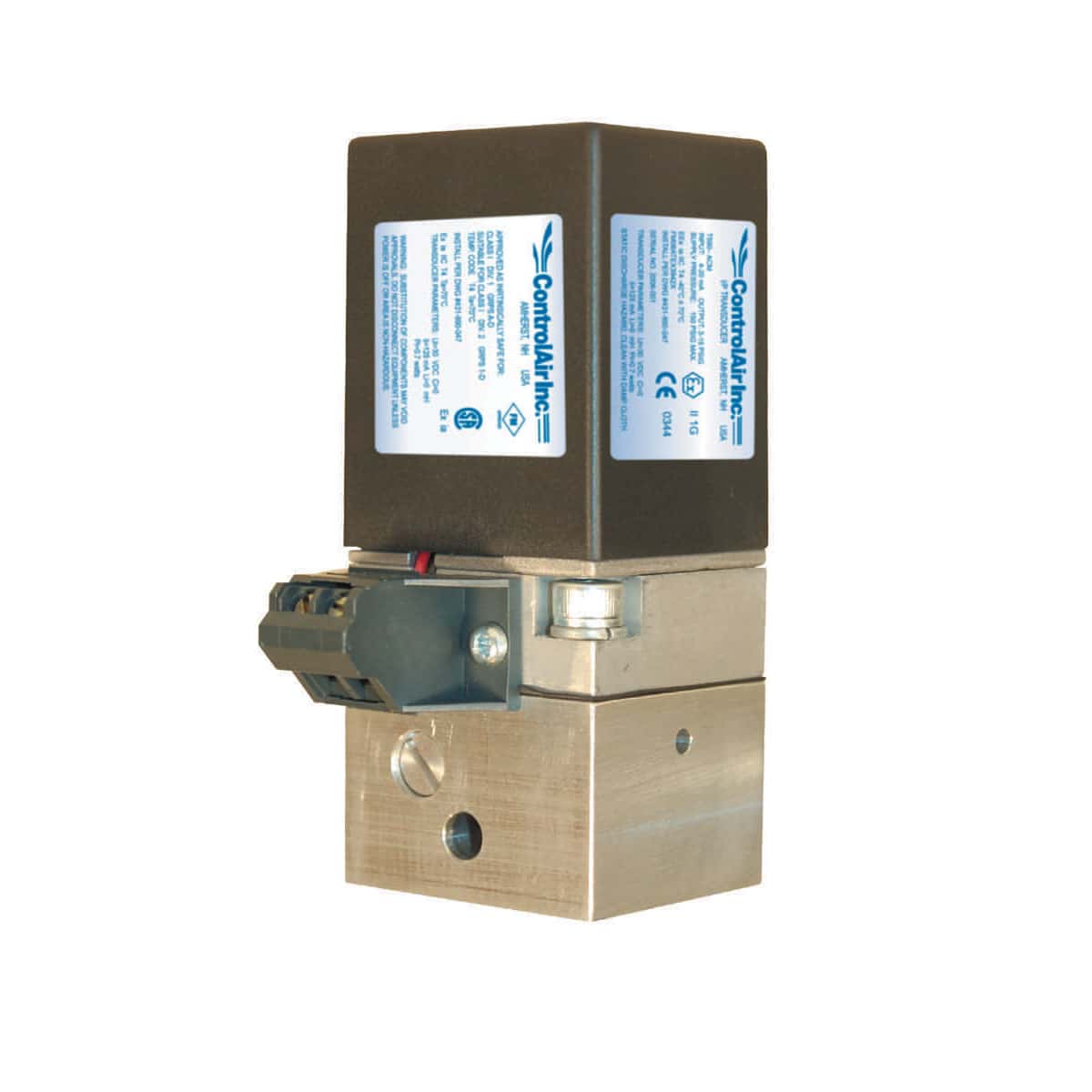

The Type 590X Manifold Mount I/P Transducer converts a variable electrical signal to a low flow proportional pneumatic output. Its compact size, light weight and immunity to shock and vibration make it ideal for use in process control valve positioner applications.

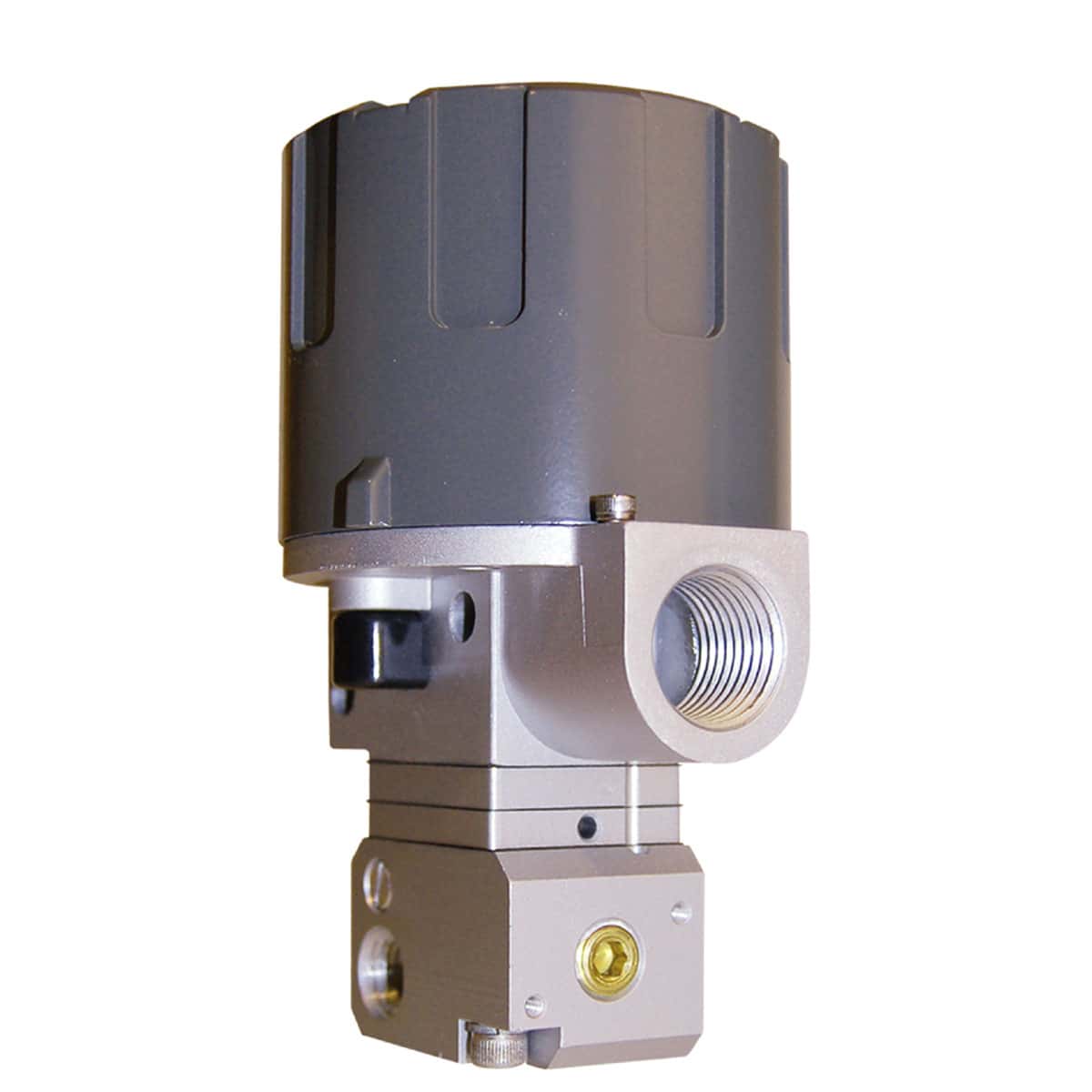

The Type 595XP Explosionproof I/P (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications.

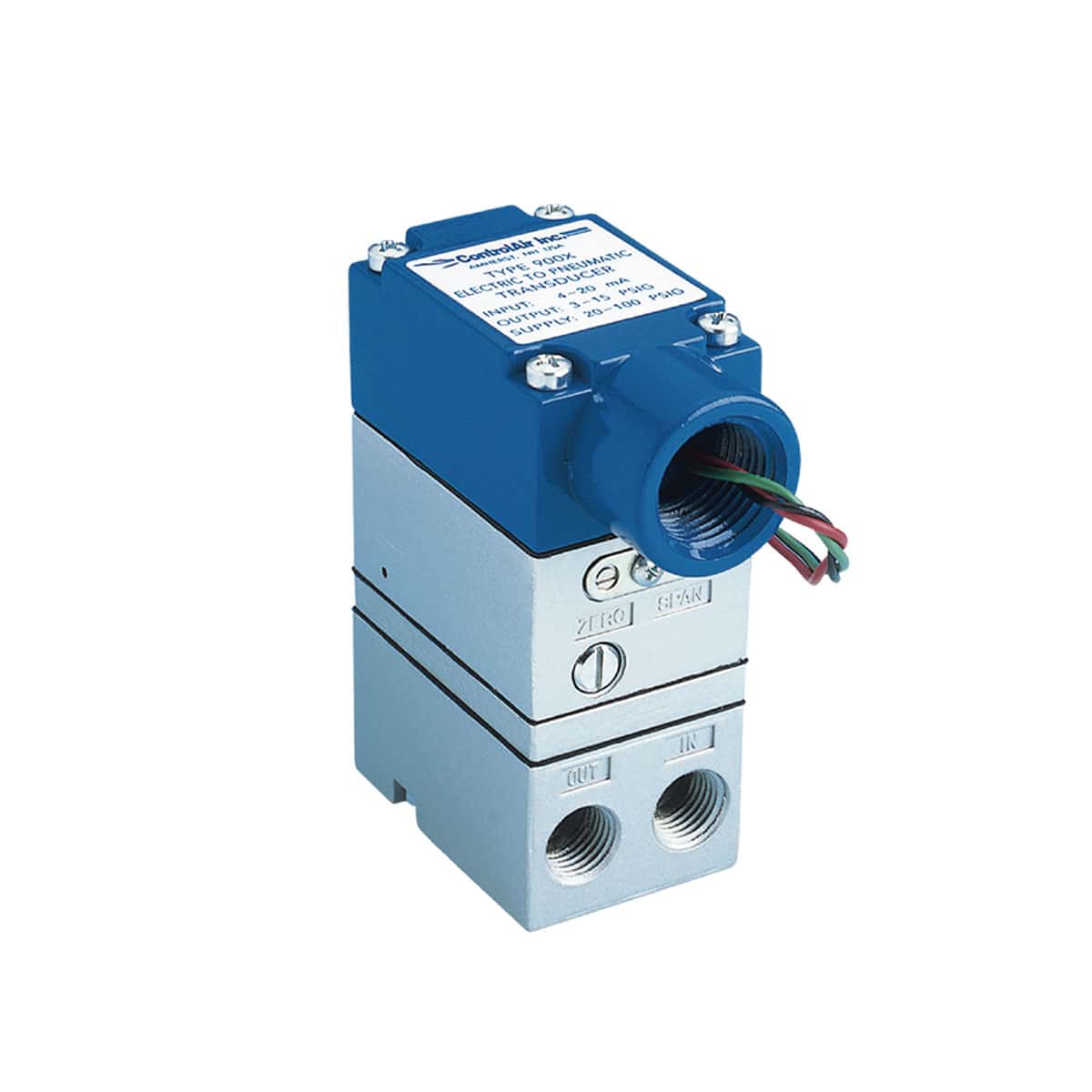

The Type 900X l/P, E/P transducers are a series of compact electronic pressure regulators that convert an electrical signal (current or voltage) to a proportional pneumatic output. Utilizing internal solid-state feedback circuitry, the Type 900X provides precise, stable pressure outputs to final control elements.
Process reliable and field rugged electronic pressure regulator

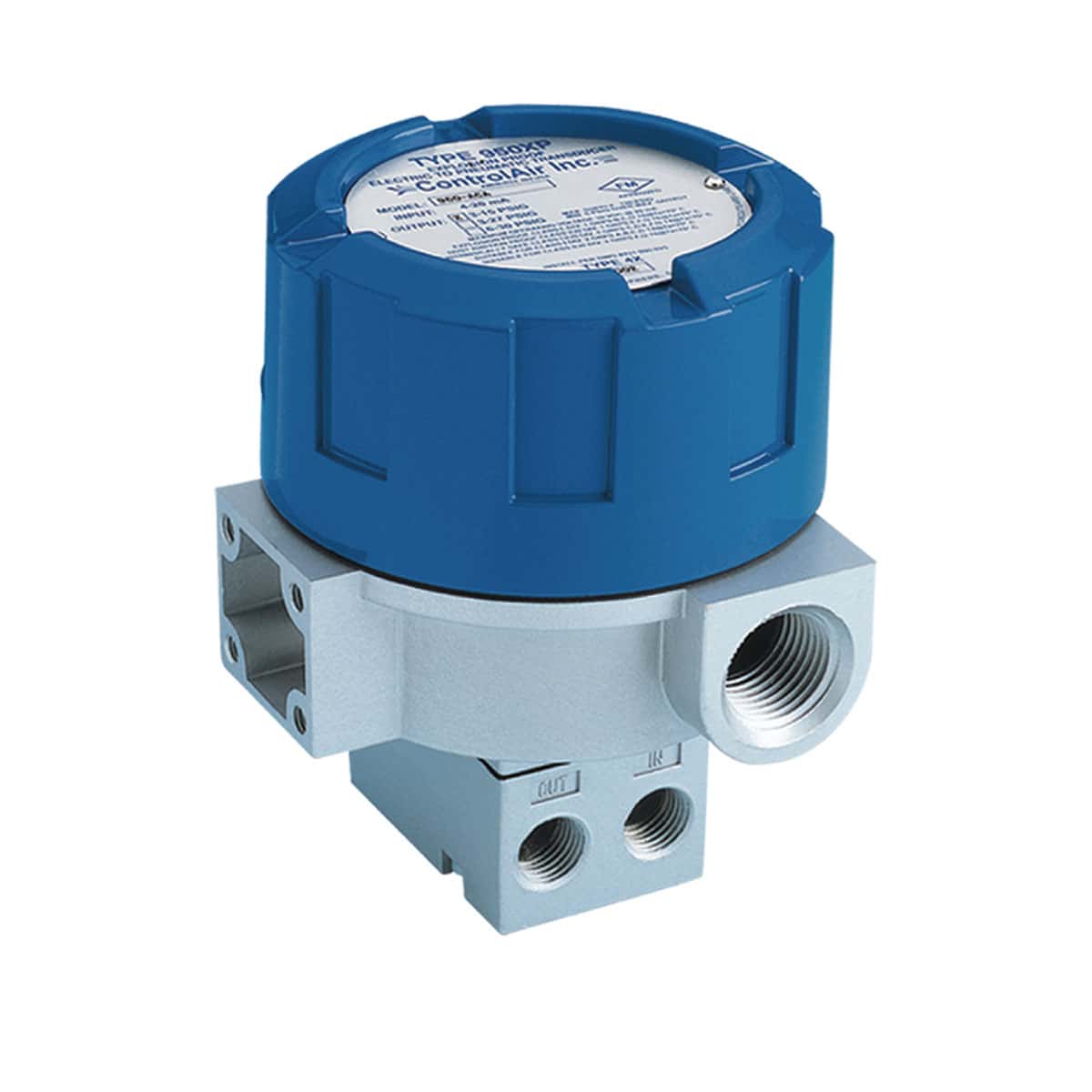

Now there’s a compact I/P transducer that delivers reliable high performance for the toughest applications in the most hazardous environments: the Type 950XP from ControlAir. The Type 950XP converts an electrical current signal to a stable, pneumatic output to actuate valves. Its NEMA 4X (IP65) housing is designed for both Intrinsically Safe* and Explosion-Proof* operation. Advanced circuitry includes electronic feedback control for superior vibration protection and highly accurate output.
