PR Electronics system configuration with three collection tanks from CMA!

In industries where multiple tanks store substances or solids, accurate level measurement is crucial for operational efficiency and safety. Equally important is the ability to monitor and respond to sensor wire breaks, ensuring consistent data integrity and system reliability.

System overview

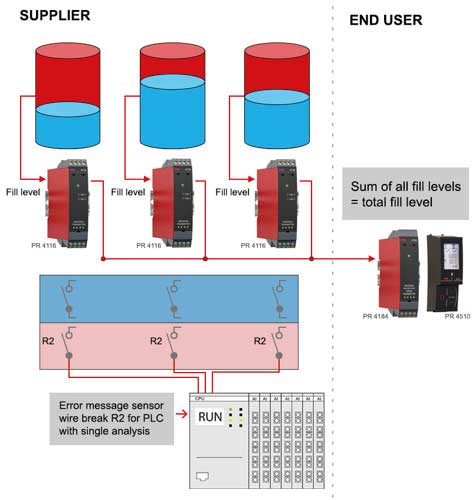

The system comprises three collection tanks, each equipped with a PR electronics 4116 device for level measurement. The end user views only the total fill level of these containers, necessitating a seamless integration and summation of individual measurements. This configuration not only provides accurate data but also includes a failure identification mechanism for sensor wire break incidents only visible to the supplier.

Application and benefits

This level measurement and sensor wire break monitoring system is versatile and suitable for any sector that manages multiple storage tanks. It is especially valuable in industries that prioritize accuracy, reliability, and non-disruptive operations. The system’s ability to silently manage sensor issues while providing consistent data to the end users enhances operational trust and efficiency.

Normal operation
Each 4116 device continuously measures the fill level in its assigned tank, accurately determining the content volume. These measurements are sent to the 4184 device, which combines the data from all three tanks to calculate the total fill level by summarizing and measuring the individual currents. This consolidated measurement is displayed to the end user, providing a comprehensive overview of the total volume of the stored medium.

Wire break detection and management
The system’s robustness is highlighted by its wire break detection and management capabilities. When a 4116 device detects a wire break, indicated by a fault current of 0 mA, it triggers Relay 2. This relay sends an error message to the supplier’s control center, discreetly alerting maintenance personnel without alarming the end users. In case of a wire breakage error, the end users are thus presented with the minimum available medium volume.

Technical configuration
The precision of the system lies in its technical configuration. The 4116 devices are meticulously set to handle specific current ranges, ensuring that the correct minimum values are measured during sensor failures. This configuration guarantees that the end users always receive reliable data, unaffected by potential sensor issues.

Technical excellence
The setup for measuring levels in systems with multiple tanks, which includes sensor wire break monitoring, demonstrates technical excellence. By ensuring accurate data collection and discreet handling of sensor issues, the system supports continuous operations. Additionally, it maintains the end users’ trust in the data’s reliability, ensuring steady operational performance.

Explore featured products
Find the key products behind our multi-tank level measurement and sensor wire break monitoring application.

PR 4116

• Input for RTD, TC, Ohm, potentiometer, mA and V
• 2-wire supply > 16 V
• Output for current, voltage and 2 relays
• Universally powered by 21.6…253 VAC / 19.2…300 VDC
• Meets NAMUR NE21 recommendations
• High 2.3 kVAC, 3-port galvanic isolation
• Intuitive programming and monitoring with PR 4500 display

PR 4184

• Measures DC inputs up to ±300 V / ±100 mA with spans as low as 25 mV / 0.5 mA
• Passive/active current output and buffered voltage output
• Fast < 20 ms response time and excellent 0.05% accuracy
• Universally powered by 21.6…253 VAC / 19.2…300 VDC
• Meets NAMUR NE21 recommendations
• High 2.3 kVAC, 3-port galvanic isolation
• Intuitive programming and monitoring with PR 4500 display

PR 4500

• Programming display for all past and present 4000 / 9000 series devices, 3000 series devices where applicable, and all versions of ConfigMate 4590
• Monitor process value and status from the built-in display
• Scrolling help text in 7 languages
• Backup memory for loading and saving of device configuration.
• Bluetooth communication enabler with datalogging and associated IoS/Android app (product option 4512)
• Modbus RTU protocol interface over RS-485 (product option 4511)

---
