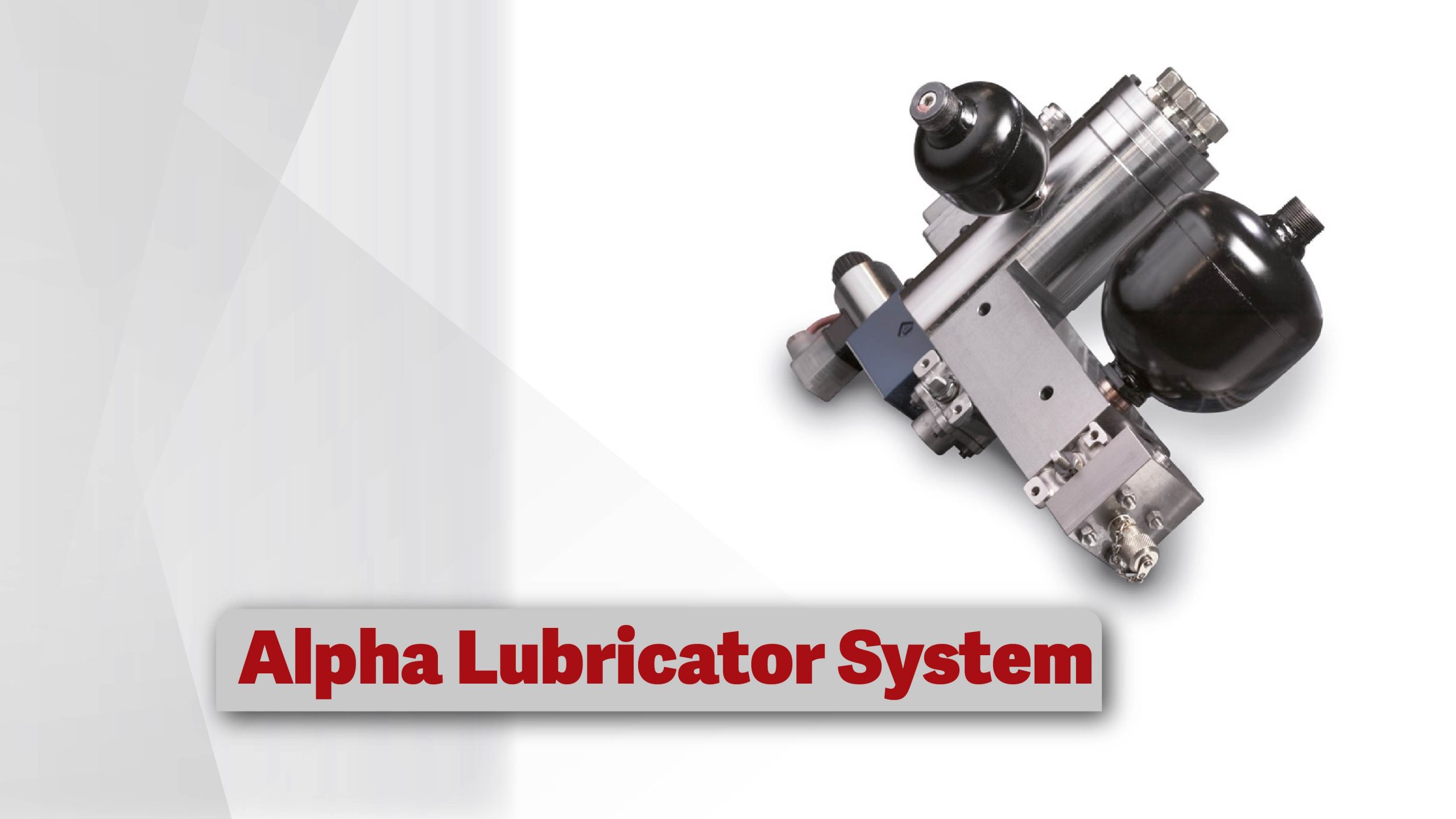

Alpha Lubricator System from CMA D. ARGOUDELIS & CO S.A.!

An Alpha Lubricator or ME Lube operating in ACC-mode (Adaptive Cylinder oil Control) adapts the lubricating oil feed rate to the fuel oil sulphur content and the engine load.The ACC-mode has been the standard on MAN B&W two-stroke engines since 2004. This cylinder lubrication, shown in the figure is based on a lubricator which injects a specific volume of oil into each cylinder for each (or for every second, third, etc.) revolution. The oil fed to the injectors is pressurized by means of Alpha lubricator on each cylinder, equipped with small multi-piston pumps. The amount of oil fed to the injectors can be finely tuned with an adjusting screw, which limits the length of the piston stroke. The cylinder lube oil consumption in ME type engines, with electronic lubricators, has comedown to 0.7 gm / BHP hr.

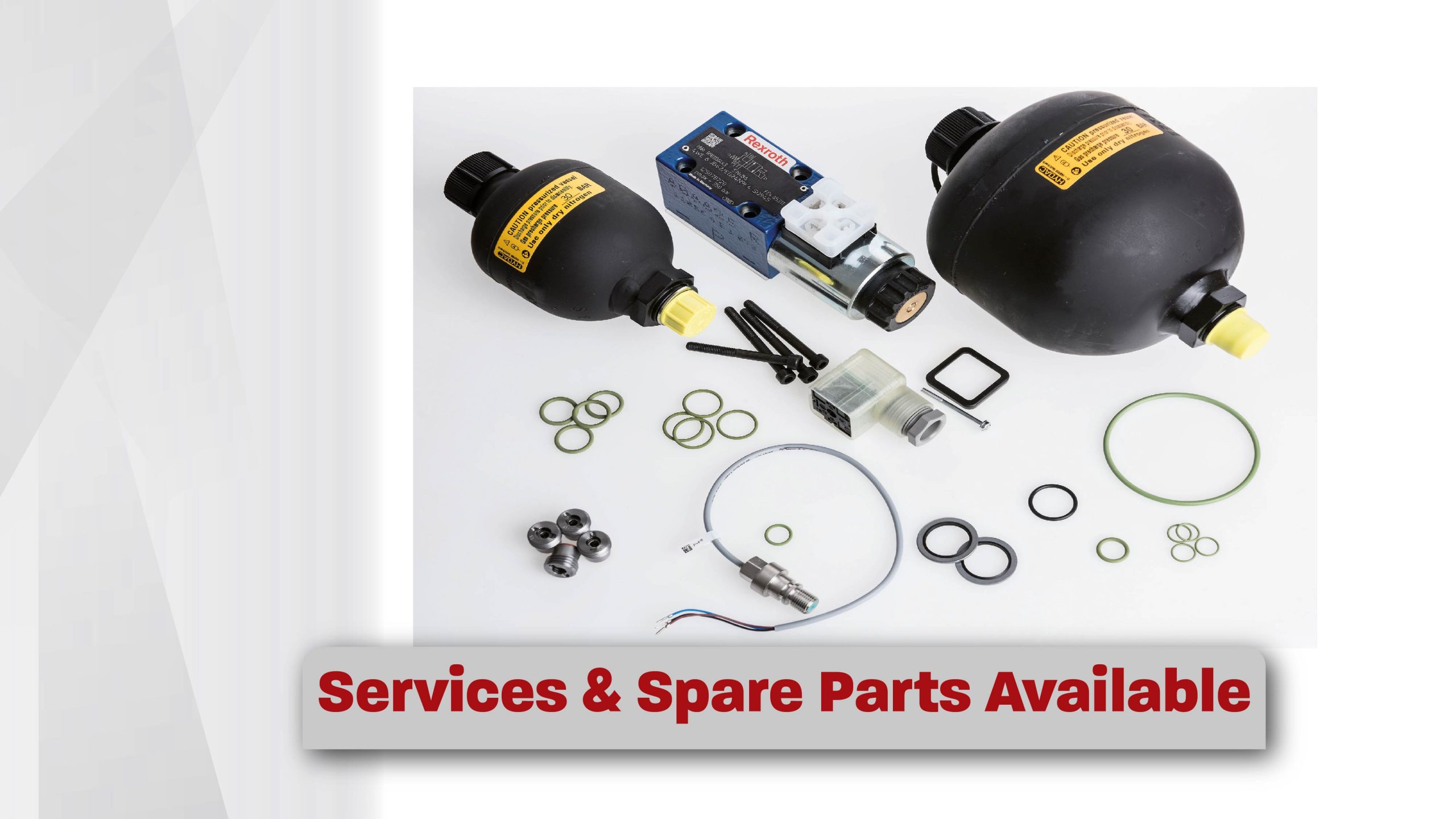

Lubricator:

-Accumulators

-Solenoid valves

-Non-return valves

-Feedback sensors

-Sealings and O-rings

Pump station:

-Filter inserts

-Coupling spiders Items

---

---
