TERASAKI Contactors & Breakers from the Supplier CMA D. ARGOUDELIS & CO S.A.!

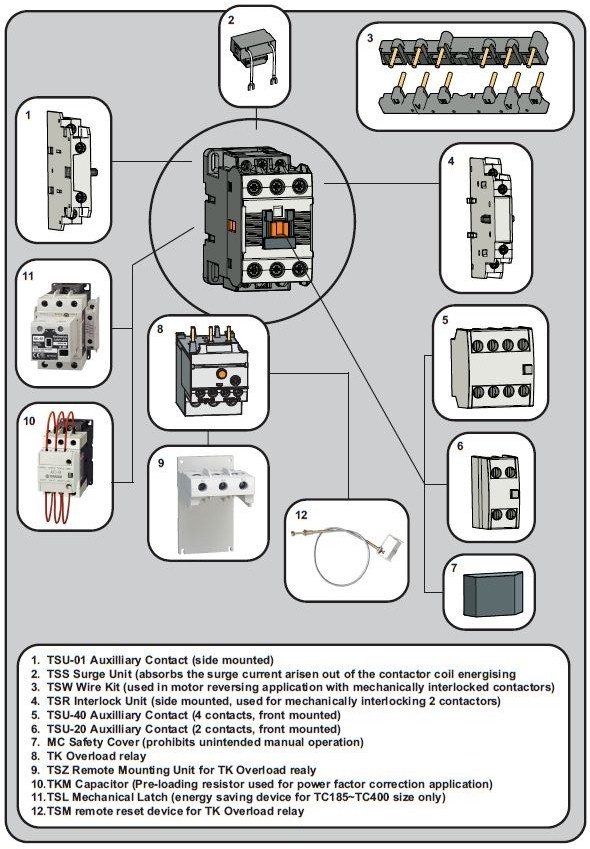

TERASAKI TemContact 2 is a new range of magnetic contactors and thermal overload relays. Current ratings from 6A to 800A are available in 9 frame sizes and in 3 or 4 pole versions.
Safer TemContact 2 has upgraded insulation voltage (from 690 to 1000V AC) and impulse withstand voltage (from 6kV to 8kV) in contactors over 40AF.
The electrical arc is extinguished entirely within the sealed unit, so that no arc flash is exposed. The sealed structure also prevents dust and humidity from entering the contactor. An optional safety cover is available which prohibits any unintended manual operation.

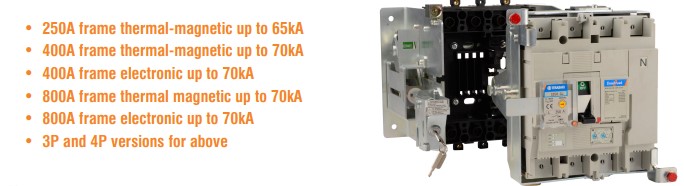

TERASAKI have developed a new range of draw-out moulded case circuit breakersdesigned for use in industrial applications including oil and gas installations. Available in 3 different frame sizes, in either 3 or 4 poles, TemBreak 2 MCCBs are housed in a robust steel frame and fitted with plug-in connections allowing the breaker body to be easily removed from the fixed part of the installation.
TERASAKI Contactors & Breakers have the following certifications: ◼ ABS Cert No. 15-YO1330364-PDA=MCCB ◼ BV Cert No. 19485-C0 BV ◼ CDOC060 TB2 125-630A ◼ LR Cert No. 00-10027 (E5) ◼ LR Cert No. LR21 2142 20TA. Back-Up Protection ◼ NK Cert No. TA20201M (Type Test 02T220) ◼ NK Cert No. TA20204M (Type Test 02T222)
