TESCOM
CMA official authorized partner TESCOM Greece
Tescom Hellas has been operating as a subsidiary of the multi-faceted DMY Group since 2007.
Tescom Hellas UPS for Marine

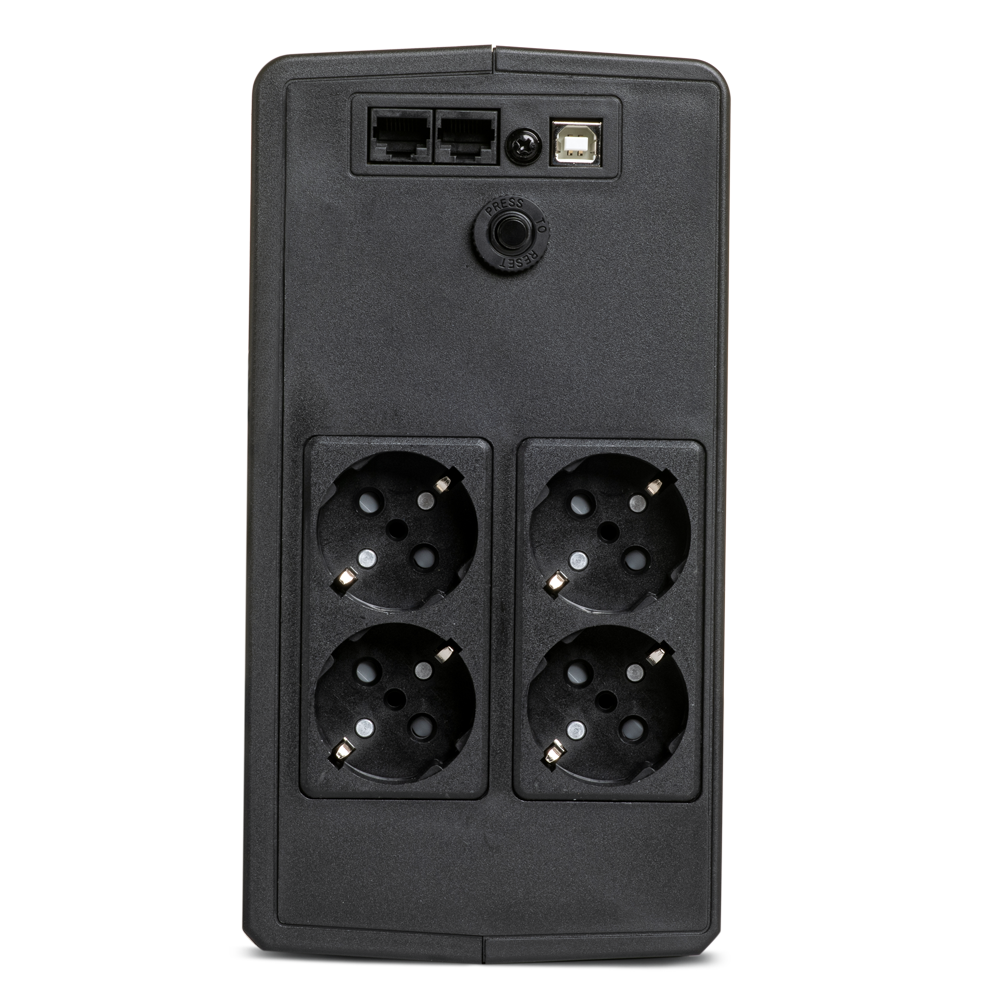

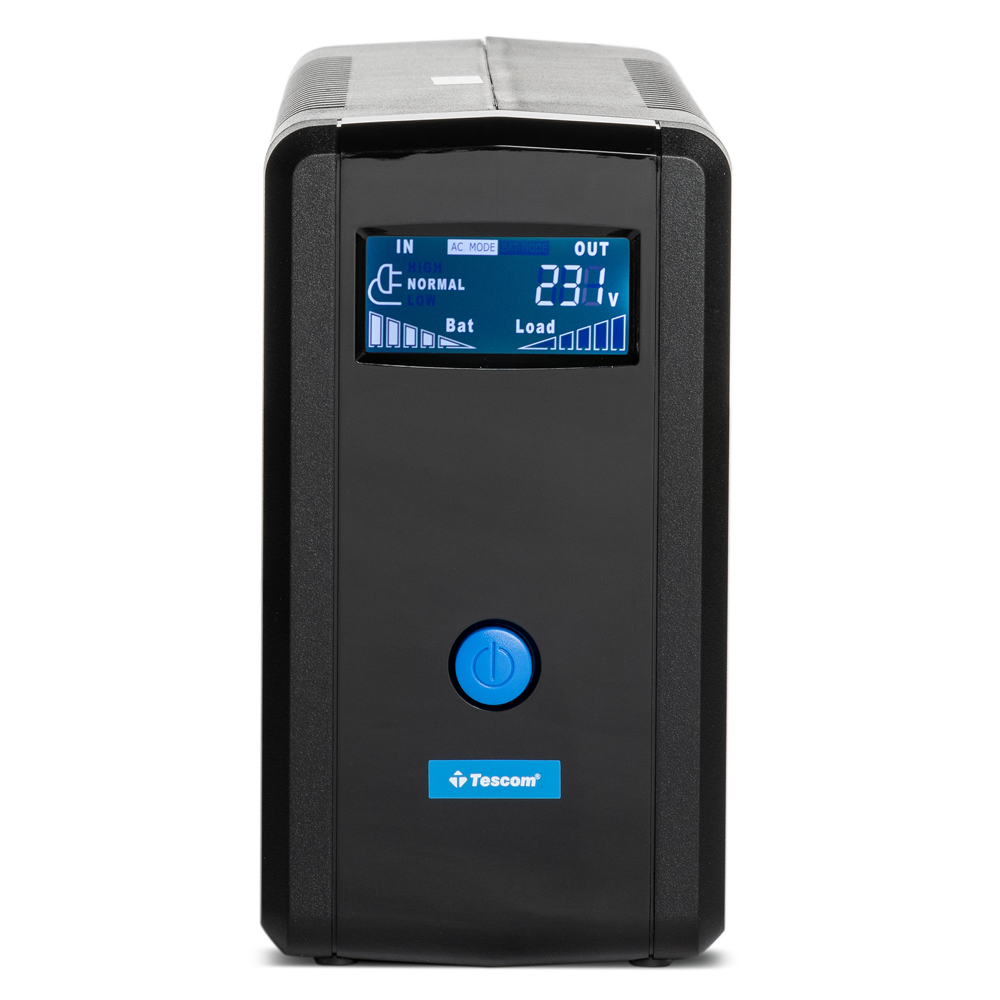

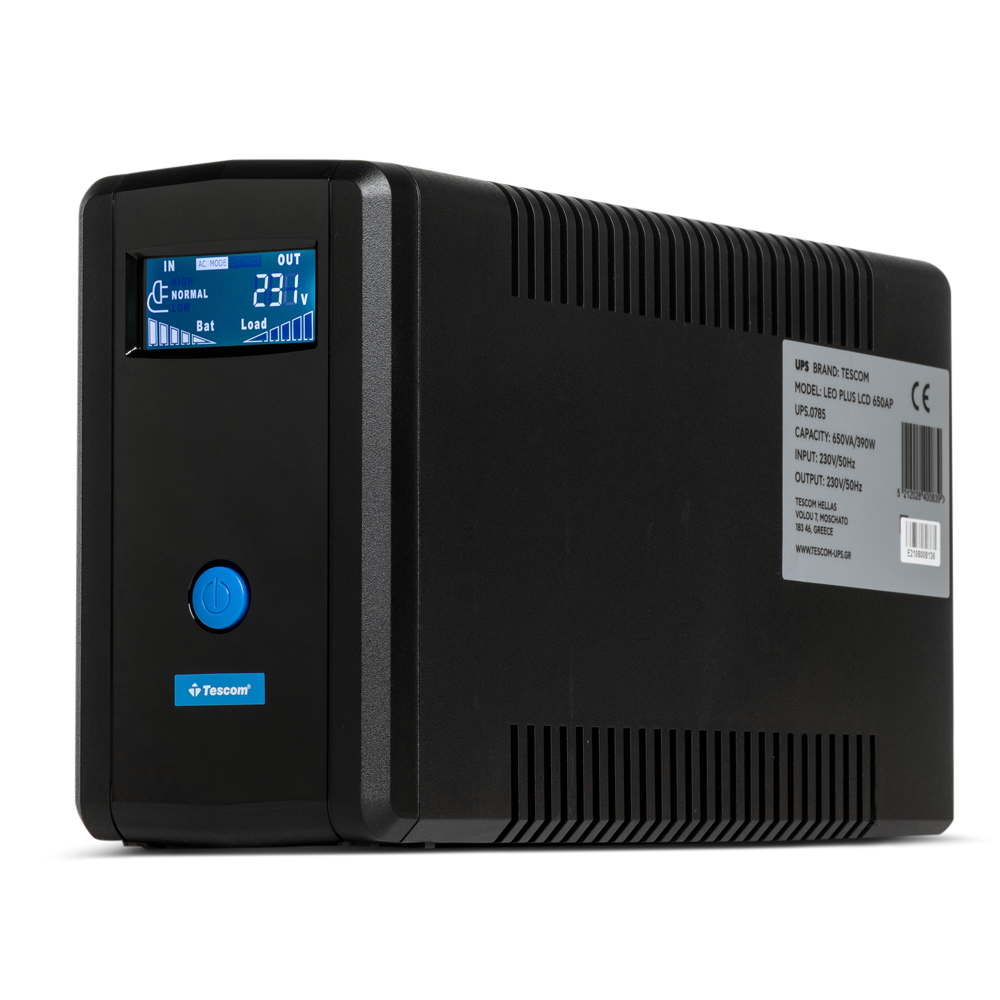

I. Line Interactive: LEO LED & LEO LCD (650 VA- 2000 kVA)
- Line Interactive technology with Microprocessor controller
- Automatic frequency detection 50 / 60Hz
- ABM technology increases the service life of the batteries
- Short-circuit protection and overload protection
- Batteries charging even when the device is switched off
- Lightweight and compact
- Automatic restart in case of extended power failure
- Automatic Voltage Stabilisation (AVR) provides correction of drafts and overvoltages without the use of battery power
- Outlets 2 x Schuko (650VA - 850VA) // 4 x Schuko (1000VA - 2000 VA)
- Charging the batteries even when they are not in use.
II. Online 1- phase (1 -10 kVA)

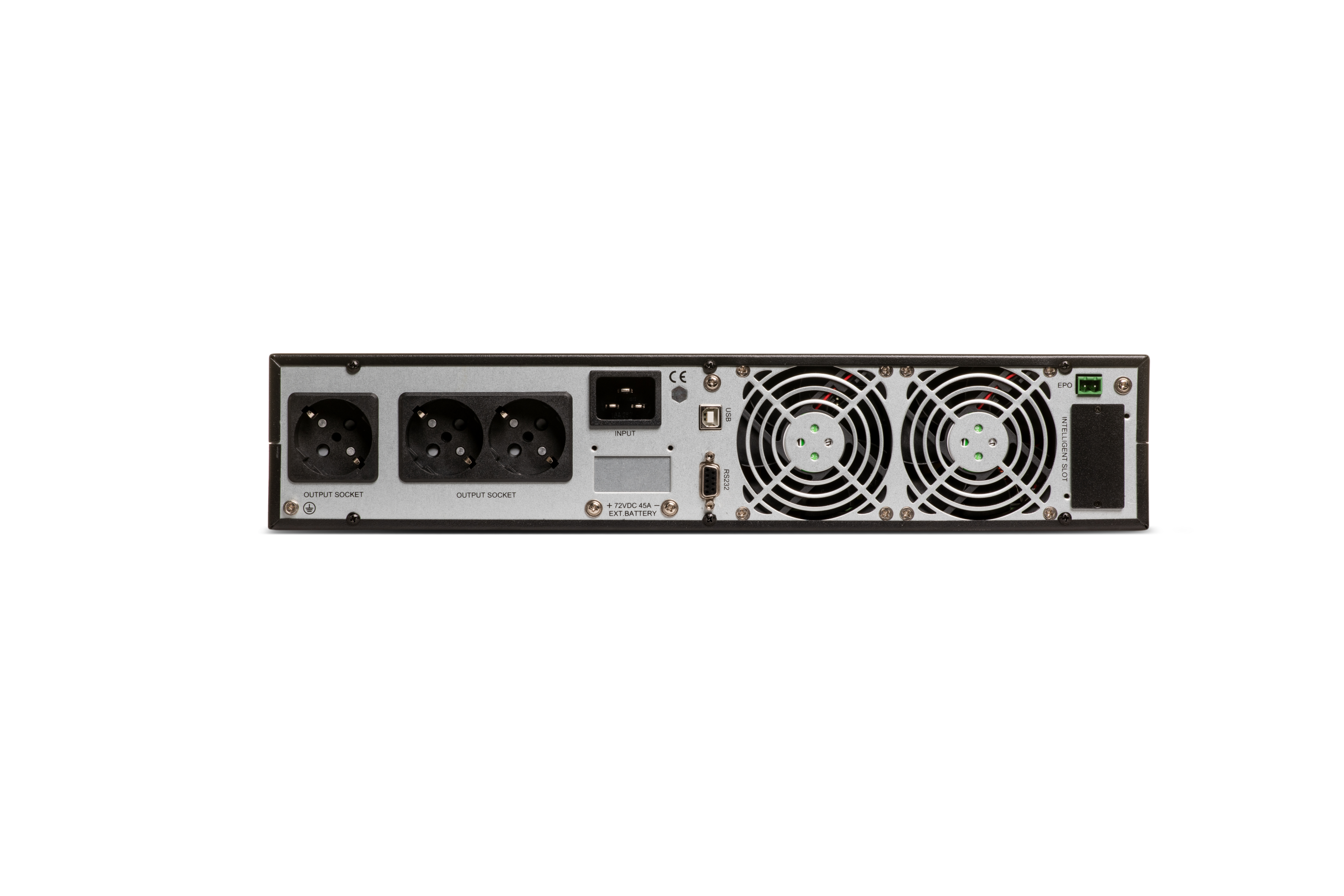

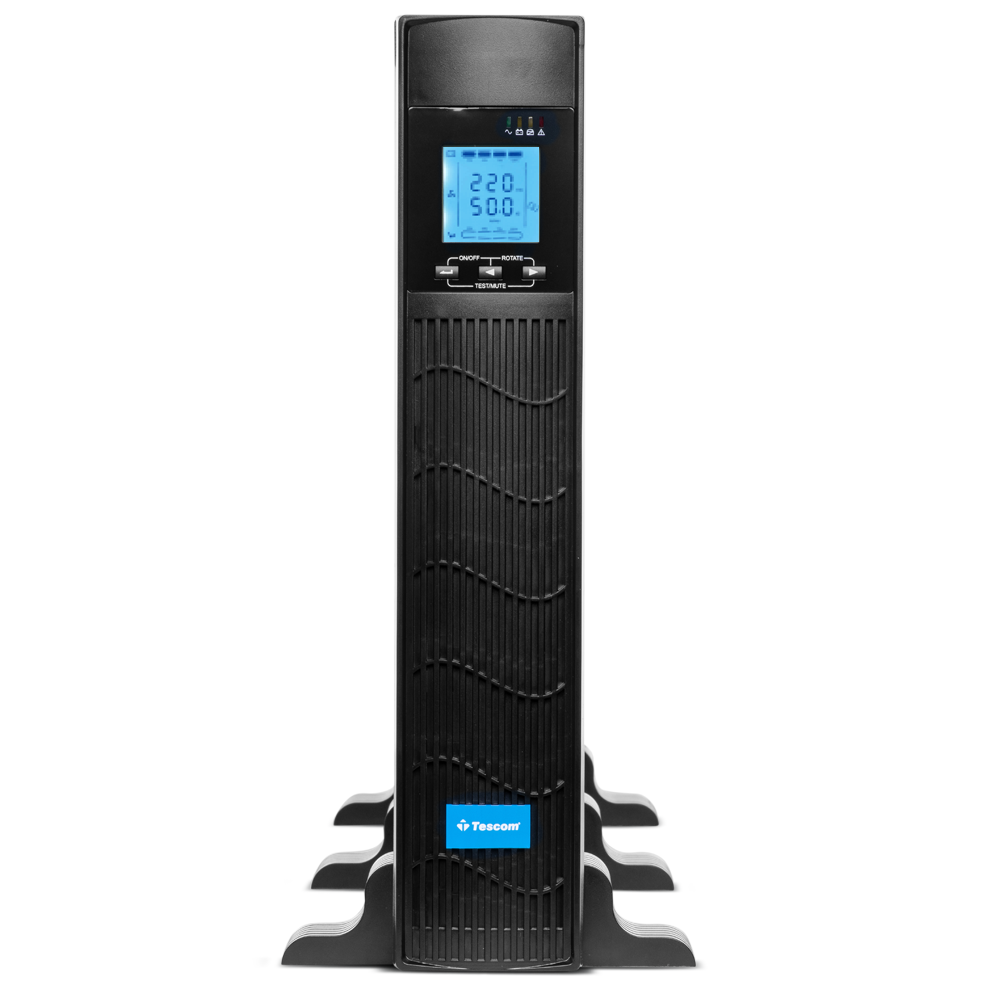

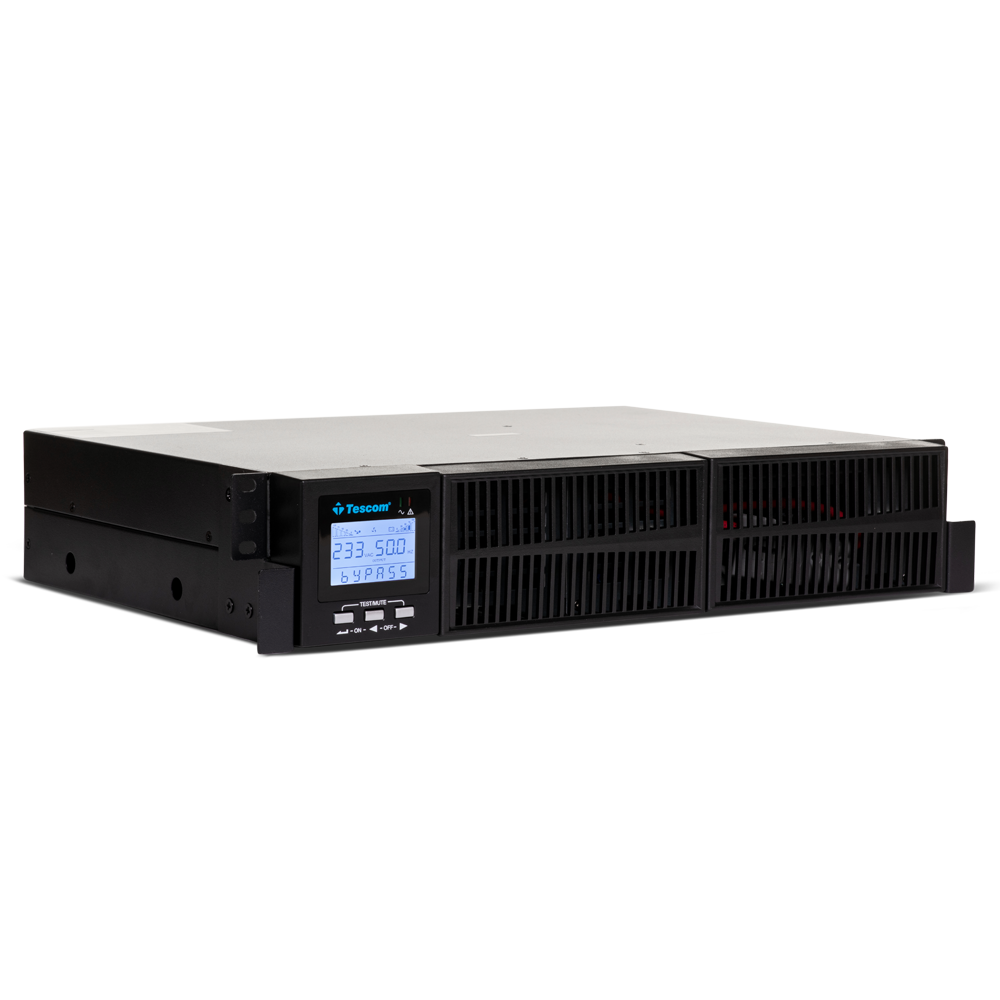

The NEOLINE PLUS series is one of our best-selling single-phase Online UPS. It is a UPS with double conversion technology, high efficiency and output Power Factor = 0.9. They provide excellent protection to devices and entire networks, by eliminating interruptions and dangerous fluctuations in the power supply. With zero transfer time, pure sine wave output and the ability to support different loads, it is the ideal solution for protecting home devices, professional applications such as servers and networking equipment. The NEOLINE PLUS models can support power capacity from 1kVA to 10kVA with built-in batteries, but also the option of connecting to external batteries for easy upgrade of autonomy (6 to 10kVA). The models from 1000VA to 3000VA can be used in both small and medium installations and can be used without electrical installation (Plug and Play), while models from 6000VA to 10000VA can be used in medium to large installations.
- True double-conversion technology
- Microprocessor fully controls the device for optimum system reliability
- With easy to operate multifucntional LCD screen
- Cold startup when the utility power is out
- With CSB batteries - autonomy up to 10min (50% load)
- Output power factor 0.9
- ECO function for energy saving
- Advanced Battery Management (ABM)
- Smart USB / RS-232, SNMP ports for remote monitoring (optional)
- Automatic restart in case of extended power failure
- Outlet Sockets: 3 x Schuko (1-2kVA) 4 Schuko / Output Terminal (3kVA)

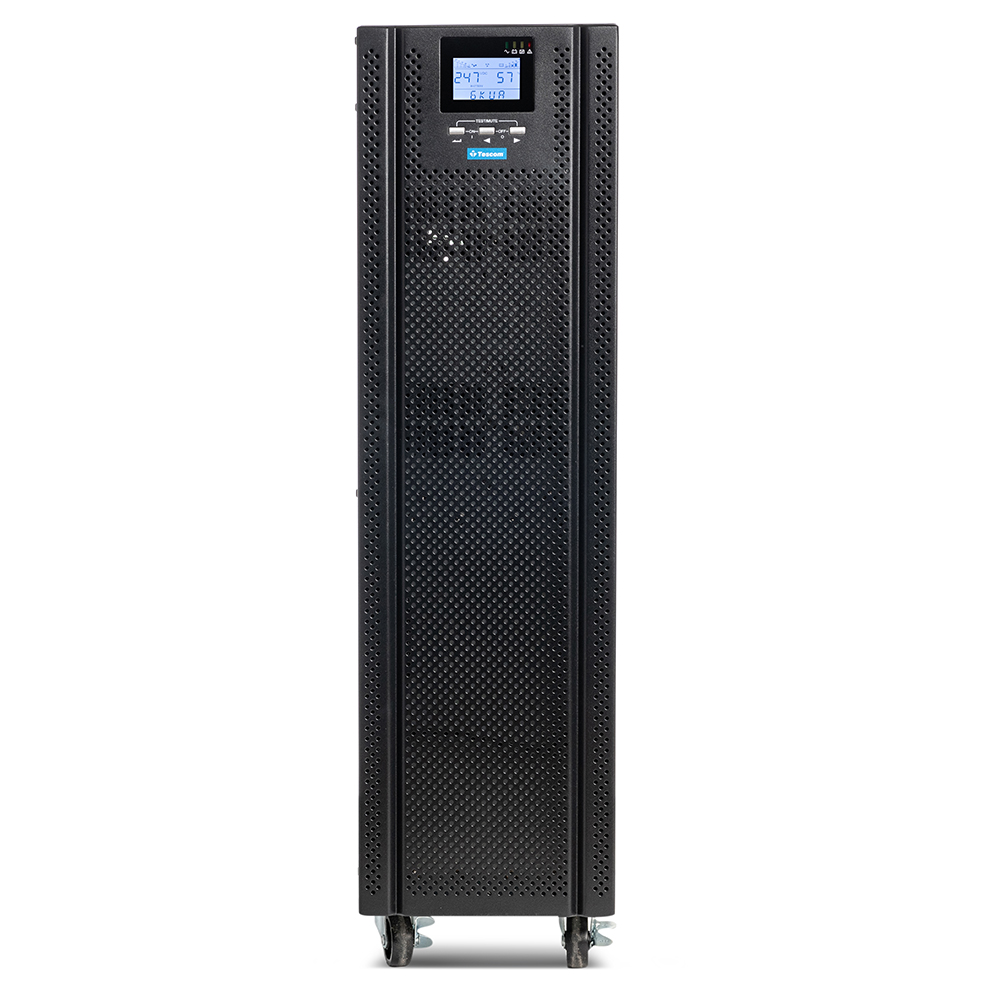

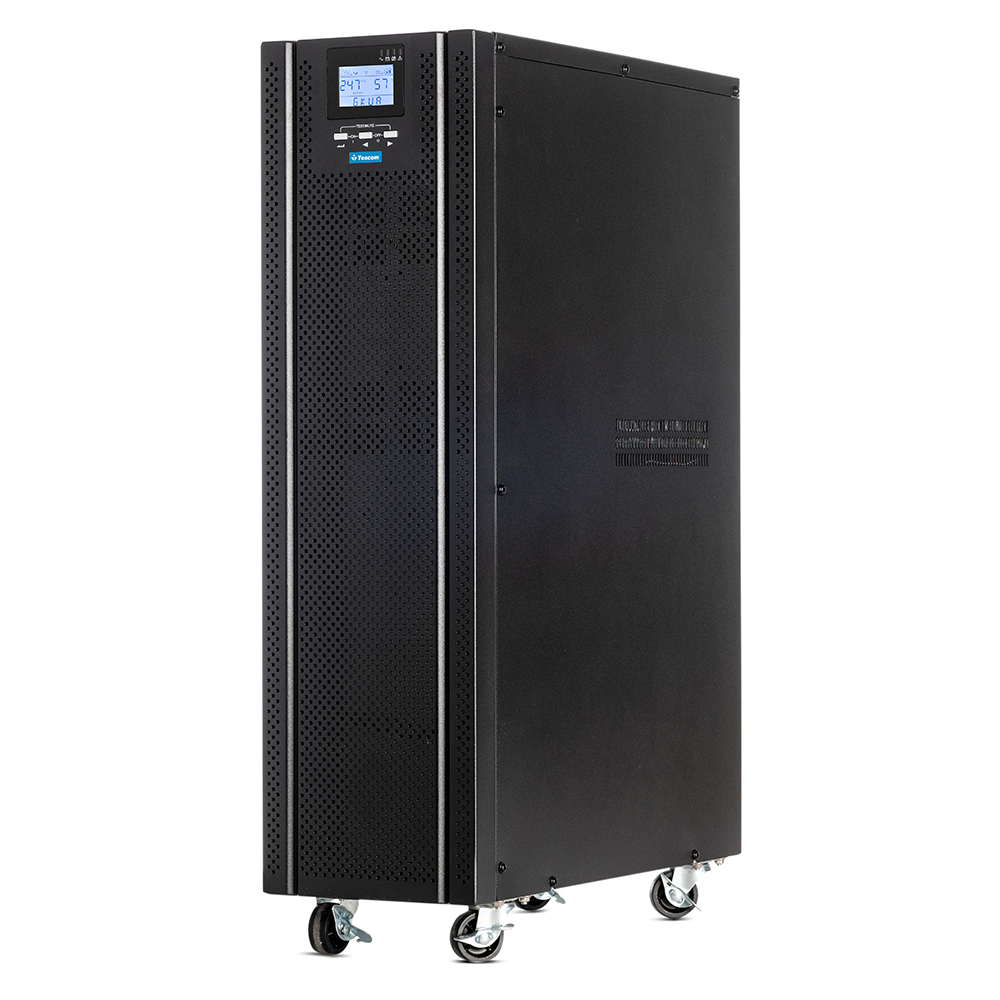

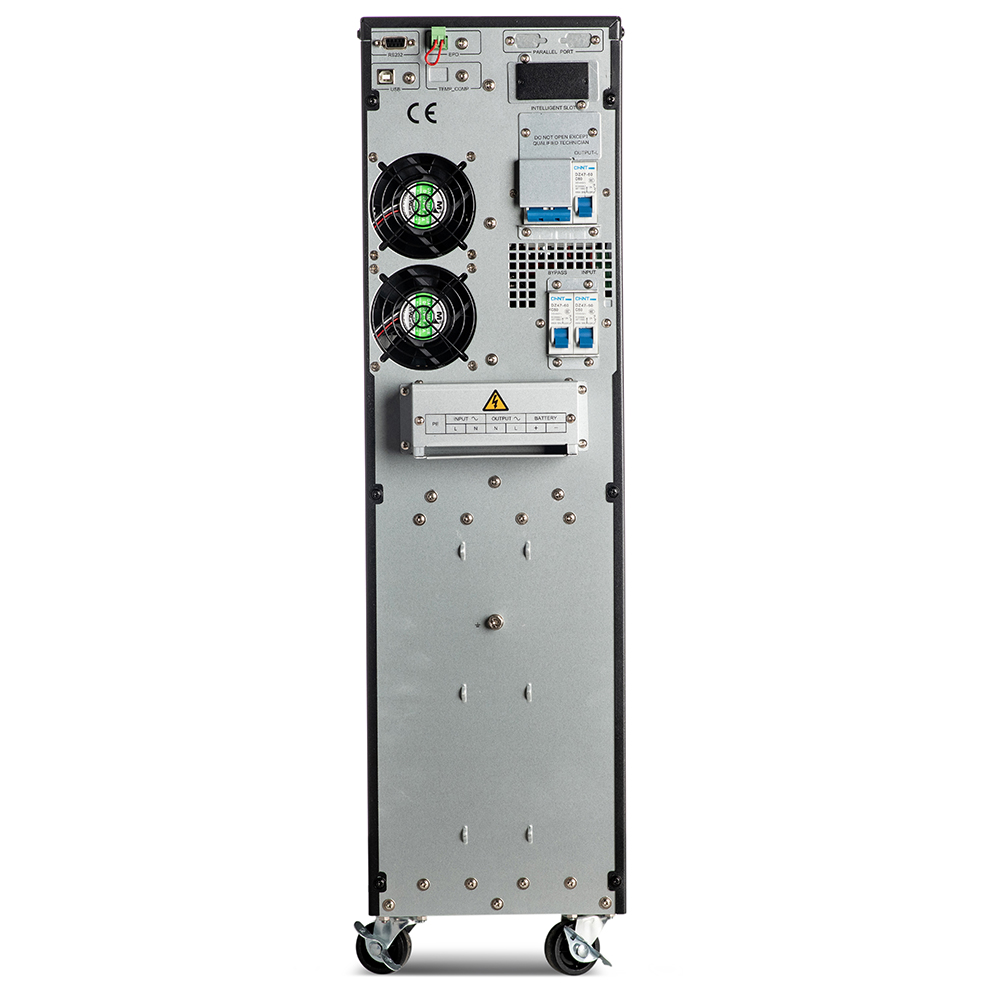

Smart single-phase ON-LINE UPS with advanced DSP and 3-level technology, full digital control, zero transfer time, pure sine wave output and high efficiency with Power Factor = 1. The Prime Pro series provide excellent protection in installations with critical loads, by eliminating all electrical disturbances and power cuts. It is the ideal solution for the protection of servers, computer applications, security equipment, medical and laboratory equipment, and lightweight industrial applications.
- Online – Double conversion UPS
- Advanced DSP and 3-layer technology
- Output power factor 1.0
- 50 / 60 Hz frequency auto sensing
- Configurable charging voltage and current
- Cold startup when the utility power is out
- Intelligent fan speed configuration in order to reduce noise and extend its service life
- EPO (Emergency Power Off)
- Hot swap batteries
- Includes software for UPS monitoring for Windows
- Automatic operation of the fan speed depending on the temperature, reducing the noise and extending its life.
- Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contact communication interfaces.
- Modern self-diagnosis function and event log
Tescom Hellas UPS for Industry
DS 300
The DS 300 H - UK series is an industrial three-phase UPS with dual conversion techynilogy that can prevent damage to sensitive electronics, protect from the loss of valuable information and guarantee the continuous operation of the supported equipment. Its features include high power factor output factor of up to 1 (HB Series), low total harmonic distortion (THDi ≤ 3%) and a 3 level topology technology rectifier. It uses three independent DSP processors ensuring high performance, functionality and reliability. Due to the innovative design, the volume and weight of the UPS is reduced to a minimum. The system has a smart battery control system for protection against overload or short circuit and provides the ability to monitor the UPS remotely with an SNMP card. It’s the ideal choice that delivers high availability and protection to extremely critical equipment installed in commercial environments, communication centres, governmental services, hospitals, highways, as well as in industrial facilities.
- ON-LINE double conversion technology and PWM pulse modulation, 3-level topology
- Active IGBT components on the rectifier , charger and inverter
- Power circuit control system via digital signal processing with integrated microprocessors (DSP)
- Power Factor up to 1
- Compatible with generator
- Low THDi (Total Harmonic Distortion) levels up to ≤ 3% and input current restriction
- Input Power Factor Correction (PFC) (≥0.99)
- Parallel connection of up to 8 units
Tescom Hellas RACK
WALL MOUNT
Pandora Soho Series
The most economic and most reliable wall mount cabinet
Wall-mounted cabinet 19'' unassembled, available in 7-9-12U with safety glass door in front. Maximum strength 80kgs.
Tip: Ideal for where quick installation with low cost is required.
- Available in heights 7U - 9U - 12U and dimensions 540x400mm
- Maximum strength 80kgs.
- Ventilation hoods in the upper part with the possibility of installing fans for active removal of hot air
- Cable entry covers on the top and bottom with special protection brushes - dimensions 70x140mm
- Certificates: ISO 9001:2008, CE EN 60950-1:2006, 100% Recyclable
Proline Series
Proline series has a wide range of wall-mounted cabinets that covers every dimensional need and can safely accommodate critical equipment. These are cabins of robust and fully automated construction that ensure excellent quality and ergonomics, while providing convenience to the user and an appearance that suits any professional, as well as domestic, environment.
- Available in heights 7U - 9U - 12U – 16U – 20U and dimensions 600x600mm
- 4.0mm safety glass front door with safety lock and metal frame. Easy removal system that allows the opening direction to be changed.
- Fully removable side doors with safety lock. Easy installation and removal system.
- Rear cover mechanically screwed for wall mounting.
- Maximum strength 100kgs.
- Adjustable cable channel with safety rubber w=145mm x w=70mm.
- Certificates: ISO 9001:2008, CE EN 60950-1:2006, %100 Recyclable
SafeboxB IP55 Series
Safebox B IP55 / Indoor & Outdoor series is designed for the safety and protection of critical equipment and cables in demanding outdoor conditions. It has an IP55 waterproof rating for humidity and dust. Each package includes grounding cables and special brackets for hanging on a wall. Maximum resistance weight 300Kg for wall support and 800kg for floor installation.
- Available in heights 7U - 9U - 12U – 16U – 20U – 22U and dimensions 600x300mm, 600x450mm and 600x600mm
- Polyester powder coating
- Waterproof index IP55
- Maximum resistance weight 300Kg for wall support and 800kg for floor installation.
- High passive air dissipation
- Possibility of placing a rear metal sheet inside the cabin for the suspension of special equipment
- 4 PG21 cable entries
- Possibility of mounting on a 4-6" pole using the special LANDE mounting kit
- Certificates: ISO 9001:2015, 14001:2015, RoHS Compliancy according to 2011/65/EU, CE EN 60950-1:2006, %100 Recyclable
DVR BOX
Wall-mounted cabin for closed circuit security monitoring.
- 0.8mm Monoblock frame
- Door opening in 27 and 90 degrees
- Ventilation grills
- Adjustable mounting blades for different DVR sizes
- Rubberized contact points for stability and protection
- Connector for a screen up to 12'' (depending on the type of screen)
- 2U Power strip socket
- 5 perforated cable entry points
FREE STANDING
Hyperline Series
Hyperline Free Standing series features a wide range of floor standing network cabinets in dimensions 16U – 20U – 22U – 26U – 32U – 36U – 42U – 47U. It can safely host servers, UPS, cabling, storage, and networking devices, etc. These are network cabins of robust and fully automated construction that ensure excellent quality and ergonomics, while providing convenience to the installer and user with an appearance that suits any professional environment. The special design helps the passive removal of hot air for better performance and economy in power consumption.
- Available in heights 16/20/22/26/32/36/42/47 U with available dimensions from 600x600mm up to 800x1000mm
- Polyester powder coating
- Glass or perforated front door, with safety lock and metal frame.
- Opening side panels with safety lock
- Maximum strength 600kgs
- Ventilation hoods in the upper part with the possibility of installing fans for active removal of hot air
- Cable entry covers on the top and bottom with special protection brushes - dimensions 70x140mm
- Adjustable support legs
- Certificates ISO 9001:2008, CE EN 60950-1:2006, %100 Recyclable
