Moxa

Connecting to Advance Industrial Connectivity

Moxa is a leading provider of edge connectivity, industrial computing, and network infrastructure solutions for enabling connectivity for the Industrial Internet of Things. With over 35 years of industry experience, Moxa has connected more than 111 million devices worldwide and has a distribution and service network that reaches customers in more than 91 countries. Moxa delivers lasting business value by empowering industry with reliable networks and sincere service for industrial communications infrastructures. Information about Moxa’s solutions is available at www.moxa.com.

Moxa Product Portfolio

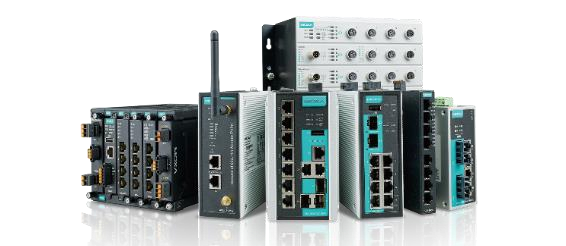

Industrial Ethernet Infrastructure

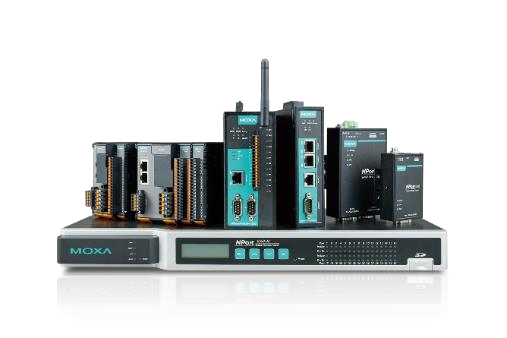

Industrial Device Connectivity

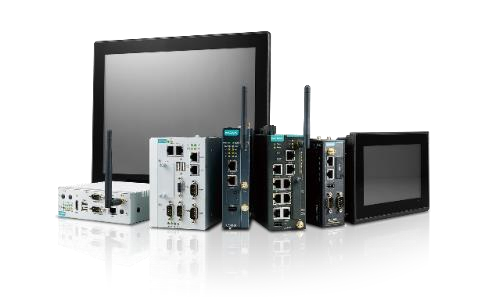

Industrial Computing & Displays

Official Distributor

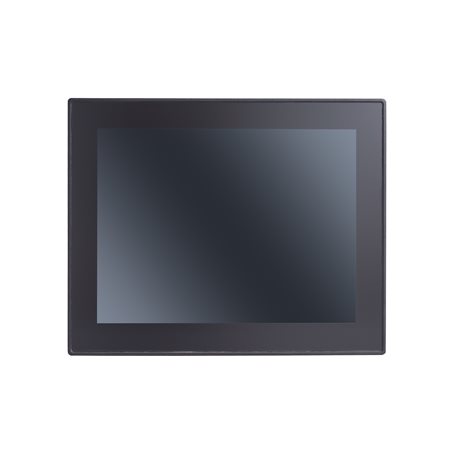

MOXA MPC-3100-E4-T

10.4″ industrial panel PC with sunlight-readable touchscreen
A rugged, fanless panel computer for HMI applications in harsh environments such as marine, energy and outdoor installations. The 1000-nit display stays readable in direct sunlight and the touchscreen works with gloves.

Intel Atom x6425E quad-core 2.0 GHz processor, 8 GB DDR4 RAM
10.4″ 1024×768 display, 1000 nits, glove-friendly multi-touch PCAP
2 x Gigabit LAN, 2 x RS-232/422/485 (DB9), 2 x USB 3.0, 4 isolated DI / 4 isolated DO
12/24 VDC power input, -30 to 60°C operation, fanless, no heater required
IP66 front panel; DNV, IEC 60945, ATEX Zone 2, IECEx Zone 2, Class I Division 2 compliant

Learn more

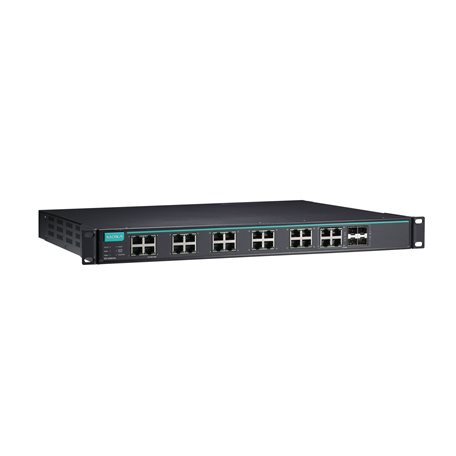

MOXA IKS-G6824A-4GTXSFP-HV-HV-T

Layer 3 full Gigabit managed Ethernet switch, 24 ports, rackmount
An industrial Layer 3 rackmount switch that interconnects multiple LAN segments through routing, built for industrial network backbones. Dual isolated power supplies keep the network running.

20 x 10/100/1000BaseT(X) ports + 4 Gigabit combo ports (RJ45 or SFP)
Layer 3 routing: OSPF, RIPv1/v2, static routes
Turbo Ring / Turbo Chain with < 20 ms recovery time, plus STP/RSTP/MSTP
2 isolated power supplies, 110 to 240 VAC (85 to 264 VAC operating range)
-40 to 75°C operating temperature, fanless; EN 50121-4 and NEMA TS2 certified

Learn more

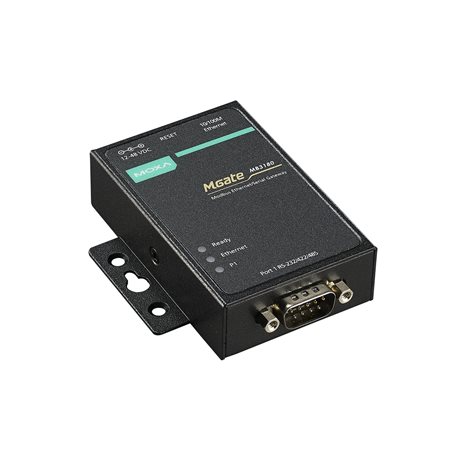

MOXA MGate MB3180

1-port standard Modbus gateway (Modbus TCP to Modbus RTU/ASCII)
A standard Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, letting serial devices such as meters, PLCs and sensors talk to SCADA and Ethernet-based systems. Easy to install and configure from a web browser.

Converts between Modbus TCP and Modbus RTU/ASCII
1 x 10/100 Mbps Ethernet port (RJ45) and 1 x software-selectable RS-232/422/485 serial port (DB9 male)
Up to 16 simultaneous Modbus TCP masters, up to 31 RTU/ASCII slaves per serial port
Auto Device Routing for easy configuration
12 to 48 VDC power input, metal housing, compact 22 x 75 x 80 mm

Learn more

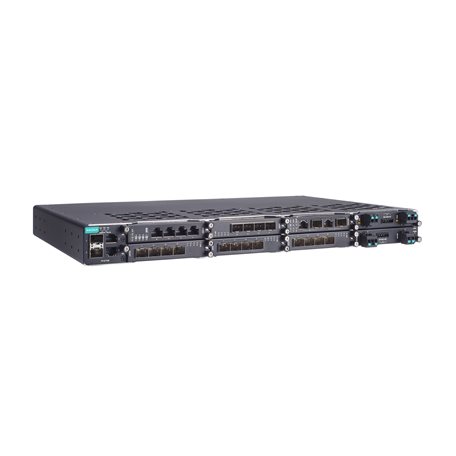

MOXA PT-G7728

IEC 61850-3 modular Layer 2 full Gigabit managed switch, up to 28 ports
A modular managed switch designed for power substations and power automation networks. Interface and power modules are hot-swappable, so the network keeps running during maintenance.

Up to 28 Gigabit ports: 4 fixed (2 x RJ45, 2 x SFP) + 6 interface module slots
2 power module slots: 24/48 VDC or 110/220 VDC/VAC
IEC 61850-3 Edition 2 Class 2 (EMC), PRP and HSR (IEC 62439-3), IEEE 1588 hardware time stamping
Hot-swappable interface and power modules
-40 to 85°C operating temperature, 19″ rackmount (443 x 44 x 280 mm)
Note: interface modules (LM-7000H Series), SFP modules and power modules (PWR Series) are purchased separately

Learn more

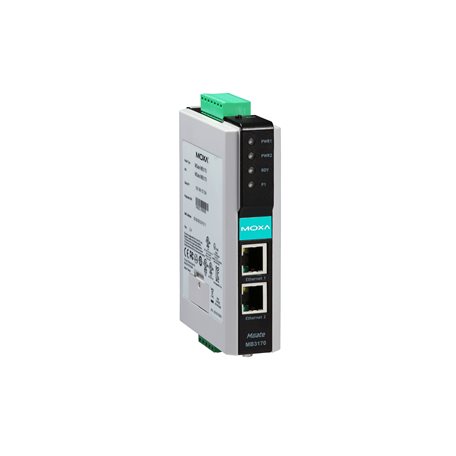

MOXA MGate MB3170

1-port advanced Modbus gateway with Ethernet cascading
An advanced Modbus gateway that converts between Modbus TCP, RTU and ASCII, with two Ethernet ports for daisy-chain wiring. Well suited to larger networks with many clients and servers.

Converts between Modbus TCP, Modbus RTU and Modbus ASCII
Accessed by up to 32 Modbus TCP clients, connects up to 32 Modbus TCP servers
2 x 10/100 Ethernet ports (RJ45) with built-in cascading
1 x RS-232/422/485 serial port: DB9 male for RS-232, terminal block for RS-422/485
Auto Device Routing, route by TCP port or IP address, 0 to 60°C operation

Learn more

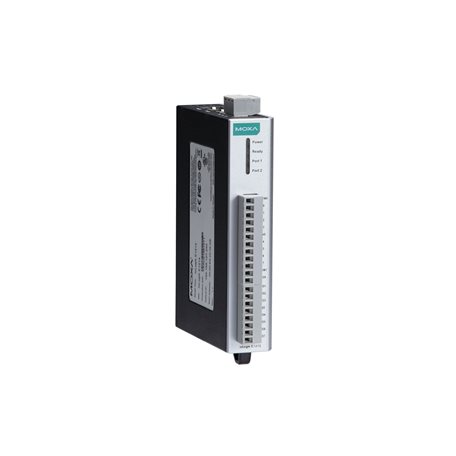

MOXA ioLogik E1240

Ethernet remote I/O with 8 analog inputs
An Ethernet remote I/O module for collecting analog signals from sensors and transmitters, used in energy monitoring, facility monitoring and machine OEM applications. The built-in 2-port switch allows daisy-chain wiring.

8 differential analog inputs, 16-bit resolution
Input ranges: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
Accuracy ±0.1% FSR at 25°C; 3k VDC or 2k Vrms isolation
2-port Ethernet switch for daisy chaining; Modbus TCP, EtherNet/IP, RESTful API
12 to 36 VDC power input, -10 to 60°C operation, web browser configuration

Learn more
