Emerson Aventics

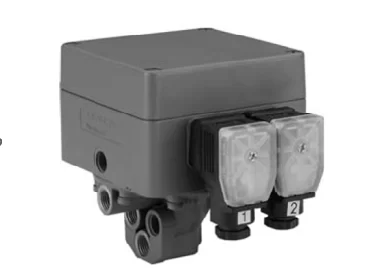

Key specifications / features

• Product type: Electro-pneumatic converter / proportional pressure regulator
• Valve design: poppet valve
• Operating input pressure: 6 to 8 bar
• Output pressure range: 0 to 6 bar
• Nominal flow rate: approximately 300 Nl/min at 7 bar supply pressure
• Hysteresis: 0.02 bar
• Supply voltage: 24 V DC (±20%)
• Maximum current consumption: 0.3 A
• Analog input signals: 4–20 mA / 0–20 mA / 0–10 V DC
• Protection rating: IP65 with the appropriate connector
• Ambient temperature: -20 °C to +60 °C

Application / use

• Marine remote-control systems, including pneumatic valve positioning and maneuvering-control functions
• Deck machinery and other marine pneumatic control circuits
• Industrial proportional pressure, tension/clamping and process-control applications

Key specifications / features

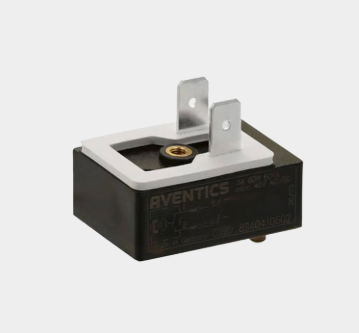

• Contact type: Reed magnetic contact
• Without LED
• Operating voltage: 10 to 48 V AC / DC
• Maximum switching current: 3 A AC / DC
• Switching capacity: 60 W / 60 VA
• Electrical connection: Form B industry plug, 2-pin
• Protection class: IP65
• Ambient temperature: -25 °C to +75 °C
• Housing material: polyester amide

Application / use

• Position sensing on marine engine-control cylinders and related automation equipment
• External sensing on compatible tie-rod cylinders with magnetic pistons
• Industrial stroke/end-position detection and automated cycle monitoring

Key specifications / features

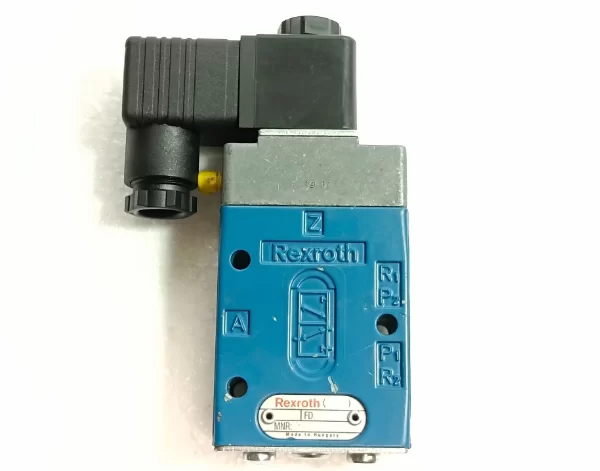

• Product type: Pneumatic directional control valve
• Function: 3/2-way (3 ports / 2 switching positions)
• Actuation: direct control / solenoid operated
• Nominal size: NW7
• Solenoid voltage: 24 V DC

Application / use

• Marine engine remote-control and automation systems
• Pneumatic maneuvering/control circuits requiring fast, dependable switching
• Industrial pneumatic networks and machine-control applications

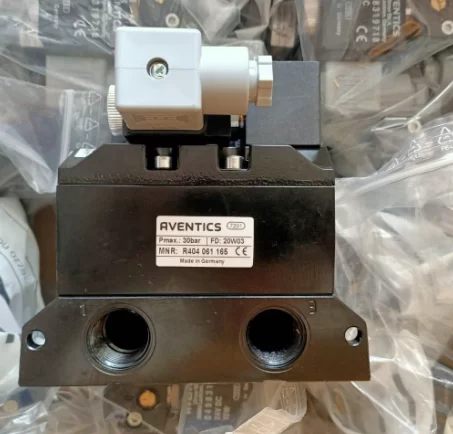

Key specifications / features

• Product type: Directional control valve (solenoid / pneumatic)
• Series: CD07
• Supplied source specification: main-circuit pressure up to 30 bar
• External pilot pressure: 10 bar
• Solenoid voltage: 24 V DC
• Power consumption: 2.5 W; continuous duty (100% ED)
• Supplied source flow rate: up to 1,400 l/min
• CNOMO-type electrical interface with IP65 protection when used with the appropriate connector
• Die-cast zinc housing

Application / use

• Industrial pneumatic automation and production equipment requiring robust directional control
• Processing, packaging and machine-control pneumatic systems
• High-duty pneumatic applications requiring PLC-controlled actuation

Key specifications / features

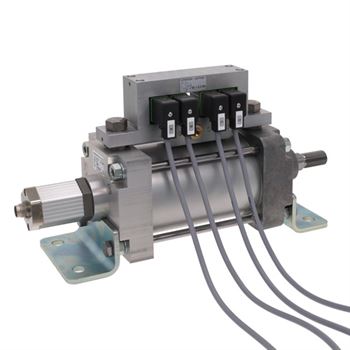

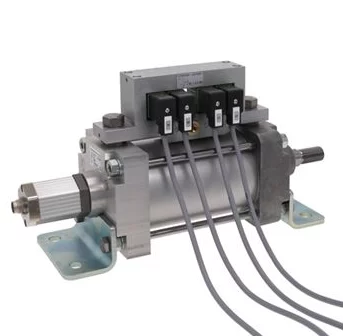

• Product type: Positioning unit / directional pneumatic control valve
• Series / model: 100D-100H
• Operating voltage: 15 V / 24 V DC, depending on system configuration
• Category: pneumatic and electronic position automation controls

Application / use

• Marine remote-control and maneuvering systems
• Remote adjustment of engine RPM, gearbox clutch functions or controllable-pitch propeller control where applicable
• Heavy-duty pneumatic positioning applications requiring discrete electrical control signals

Key specifications / features

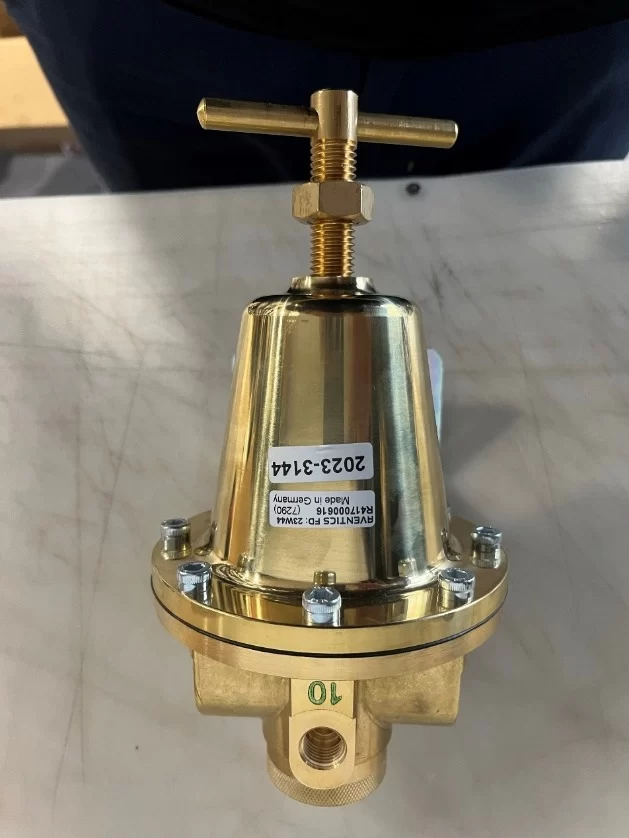

• Product type: Pressure regulator / reducer
• Maximum operating pressure: 40 bar
• Connection size: G1 (1 inch)
• Series / model: DM100-40BAR
• Metal construction with brass fittings

Application / use

• Marine engine control and remote-maneuvering systems
• High-pressure industrial pneumatic networks requiring controlled pressure reduction

Key specifications / features

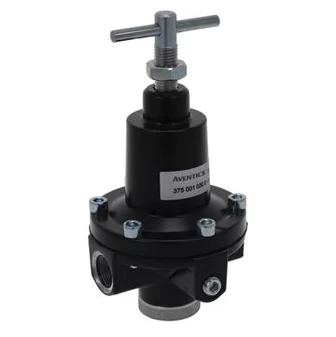

• Product type: Pneumatic pressure regulator / air-control valve
• Maximum operating pressure: 30 bar
• Connection size: G 3/8
• Type code: 30BAR-G3/8

Application / use

• Marine remote-control and maneuvering pneumatic circuits
• Pressure reduction within Marex-type marine control architectures where this legacy component is specified
• Heavy industrial pneumatic panels and air-distribution systems
