Klay Instruments Marine Level Transmitters by CMA D. ARGOUDELIS & CO S.A.!

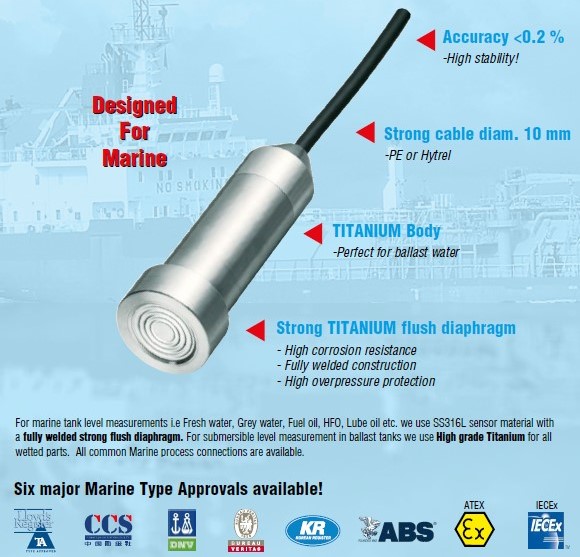

The ‘Hydrobar’ is a range of submersible (IP68) hydrostatic level transmitters with a very strong flush diaphragm from AISI 316L (Option: Gold plated, Hastelloy C or Titanium).

The basic accuracy is 0.2% from adjusted span. The most used version is the FR (Fixed Range) type with a Fixed calibrated range. As an option an adjustable type is available with a Stainless Steel electronics housing on top.

Typical applications are:
– Level measurement in Ballast tanks, HFO tanks, (Grey)water tanks, etc.
Pressure measurement on ballast pumps.
– For IP68 pressure measurement on ballast water pumps, the submersible
Hydrobar-FR is available with a threaded process connection with a strong
flush diaphragm. Vacuum / overpressure ranges are also available
(i.e. -1 to +10 bar).
– The Hydrobar pressure and level transmitters can also be supplied with a
flanged process connection.
– When HART Protocol is required, the ‘Intelligent’ type Hydrobar ‘I’
(0.1% accuracy) is available, ask for a detailed brochure.
