CMA float level switch for bildge alarm | Highoverfill alarm system solution

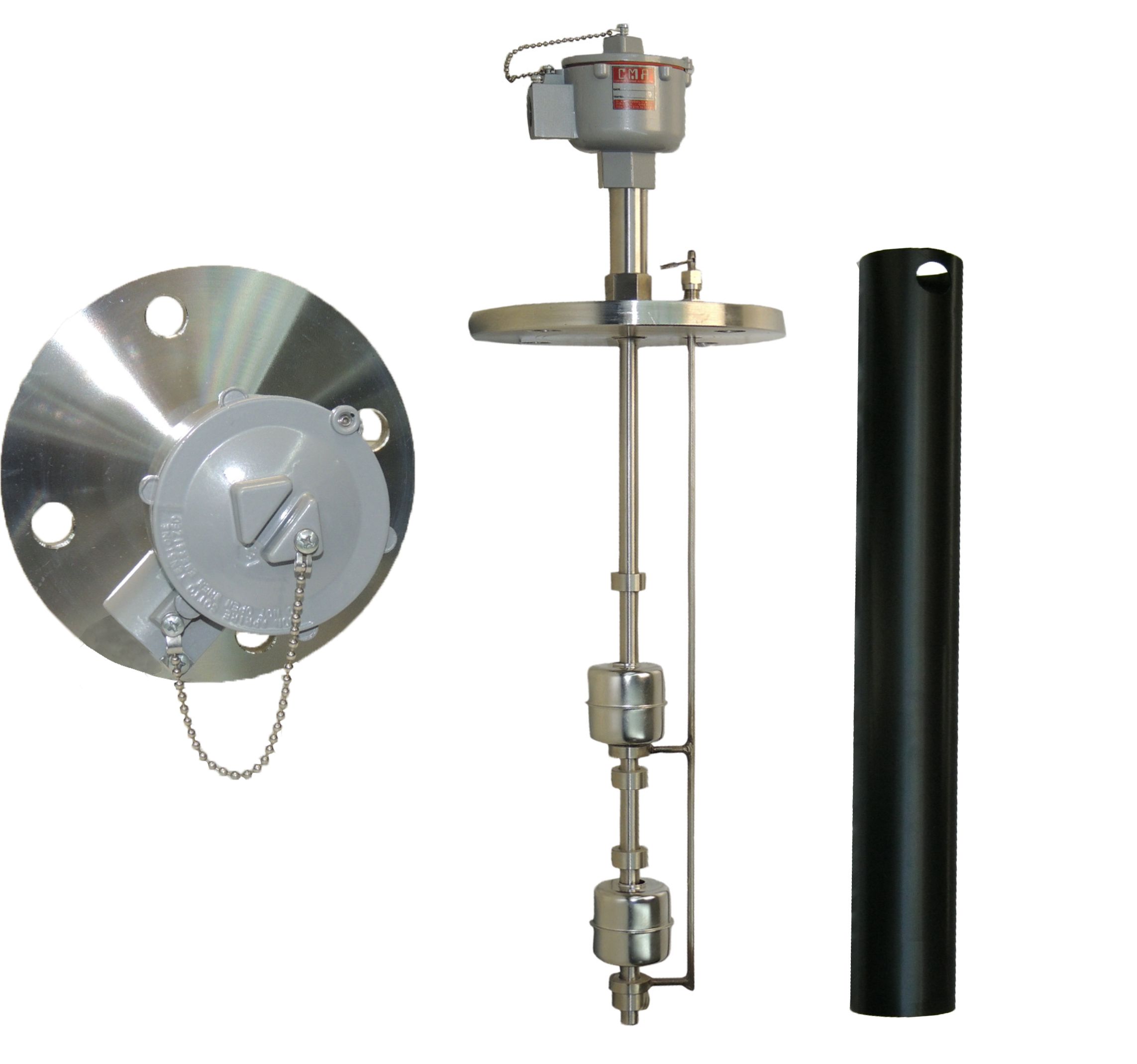

This level switch uses high quality materials and gives reliable and accurate measurements.

It comes with ex-proof certified head in order to satisfy hazardous locations. The contact inside guide tube reacts when float reaches level alarm point. All wetted parts are made of stainless steel AISI 316L.

---

System Introduction

Tank overfill level alarm system is composed of level alarm sonsor, control panel. Isolated board and externally rotating light and air horn.

When the magentic float of level alarm sensor shifts upward to reed switch

set inside the sensor guide pipe, this movement generates alarm signal and simultaneously the alarm signal is transmitted to the connected places. The high level alarm defines 95% full of tank volume, and 98% full of tank volume is defined as either high-high level alarm or overfill level alarm.

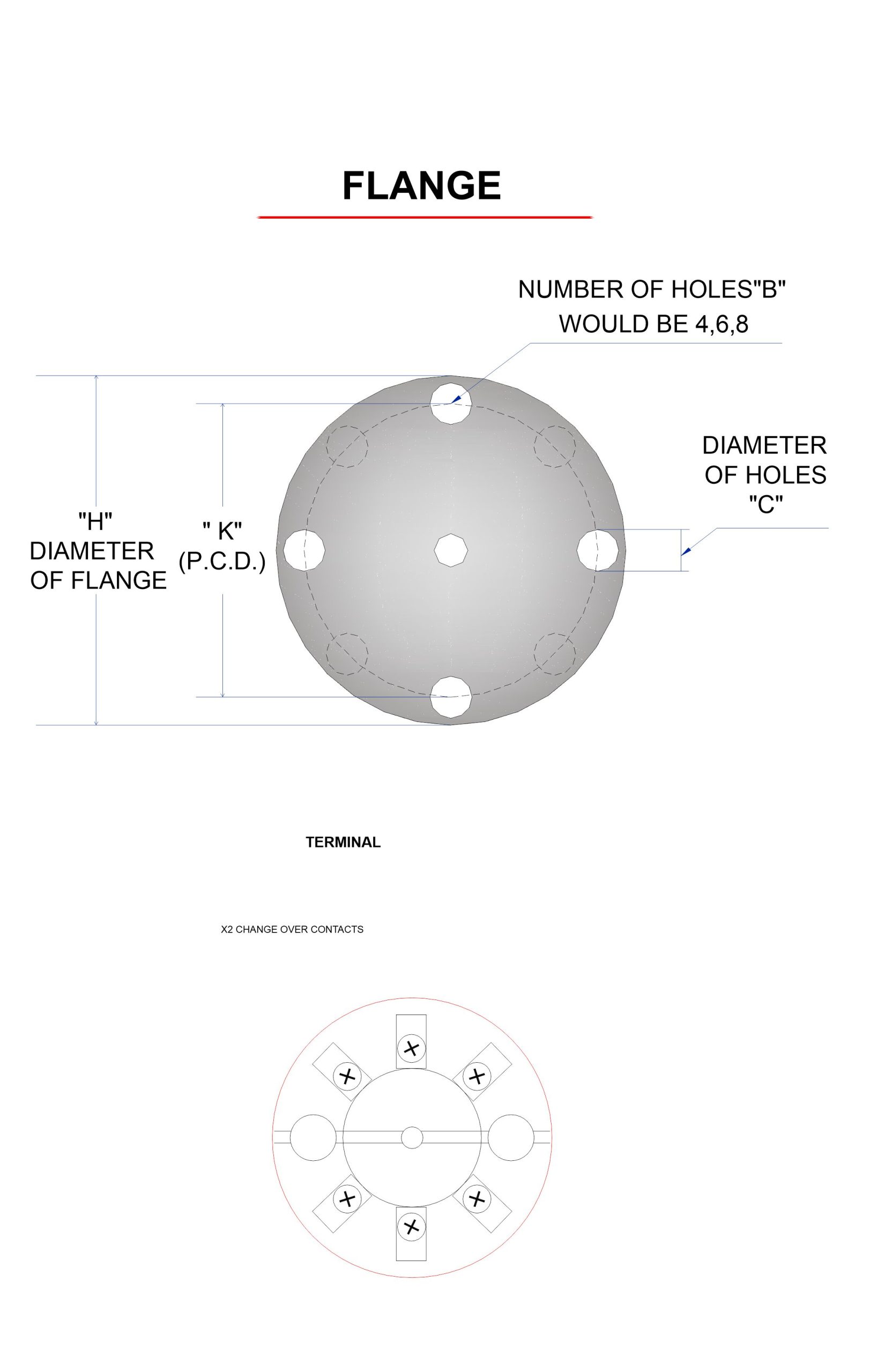

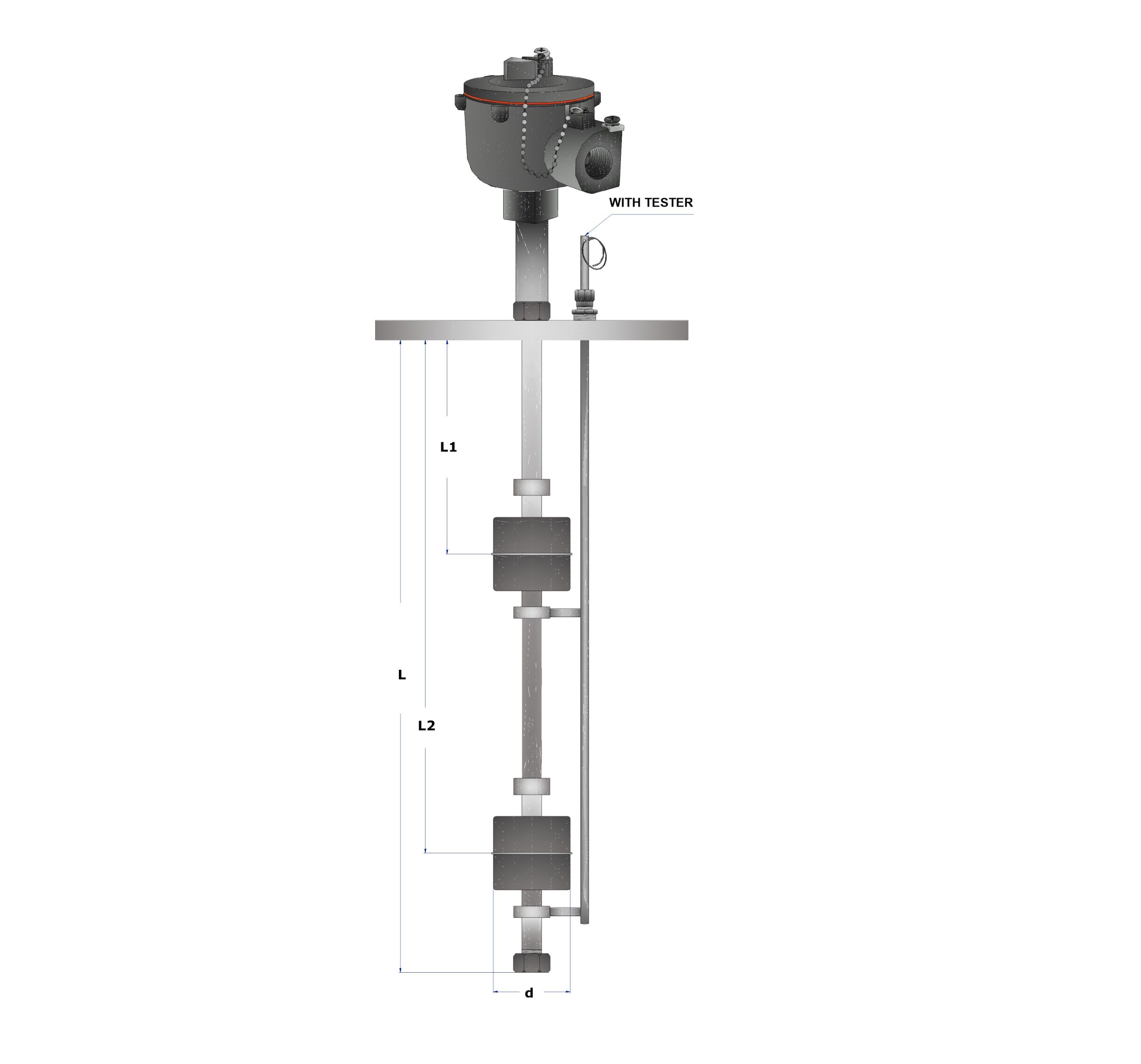

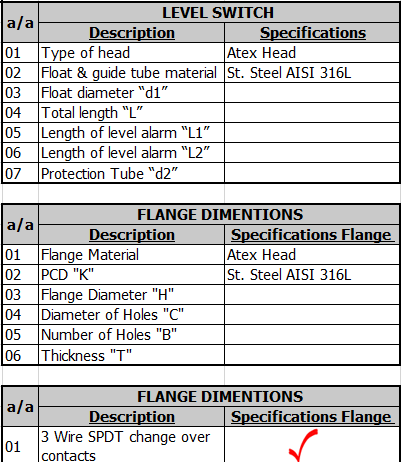

Technical Specifications
