CMA D. ARGOUDELIS & CO S.A. Introducing Nivelco Temperature Transmitters!

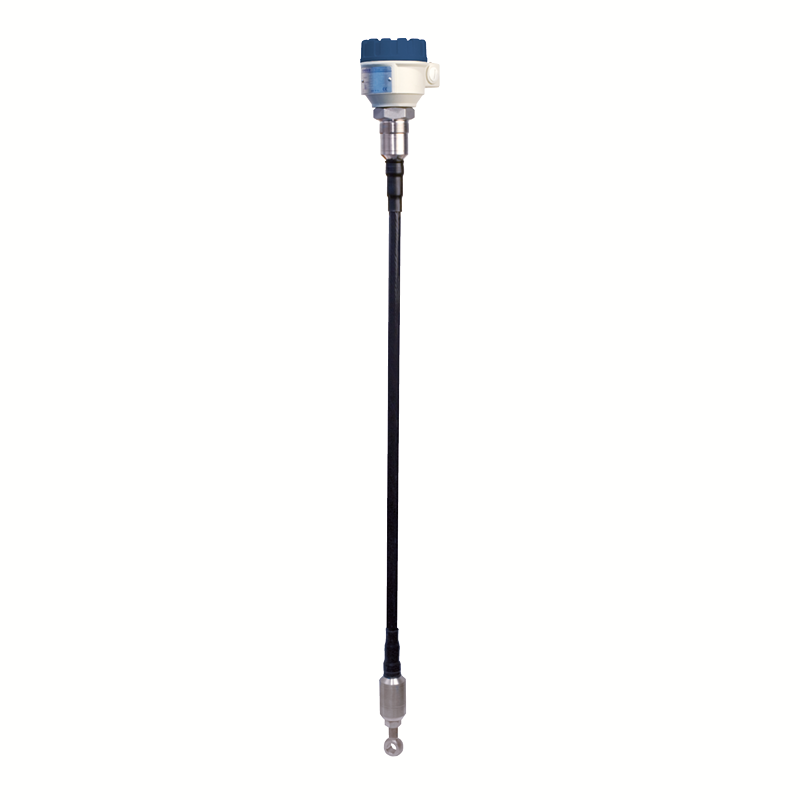

THERMOPOINT 2-wire Temperature Transmitters are suitable for continuous multi-point measurement, indication, and transmission of the temperature of grain and feed stored in silos.
■ 2-wire multi-point temperature transmitter ■ Temperature measurement of powdered, granular solids or liquids ■ Up to 15 sensors / probe ■ Up to 50 m probe length ■ Temperature trend monitoring ■ −40…+125 °C range ■ HART® communication ■ Explosion-proof variants

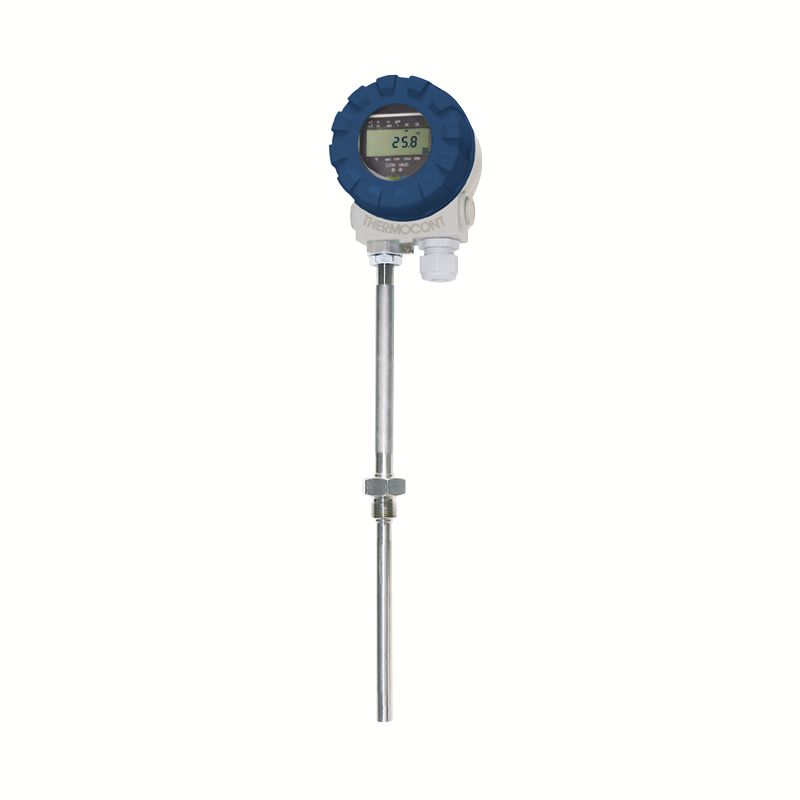

The THERMOCONT product range can be divided into two parts in terms of output types. THERMOCONT T encapsulated temperature sensors and THERMOCONT TT temperature transmitters.
■ −50…+600 °C range ■ Plug-in display module ■ 4…20 mA, HART® communication ■ Integral “A“ or “B“ class Pt100 probe ■ Probe length up to 3 m ■ Stainless steel or PFA-coated probes ■ Heavy duty housing ■ Multiple head positions ■ Explosion-proof variants
The THERMOCONT TT transmitters have a 4…20 mA output and, as an option, digital HART® communication. The temperature sensors have a robust external protective tube, which is available with PFA-coating as well. The highest process temperature of these instruments is +600 °C.

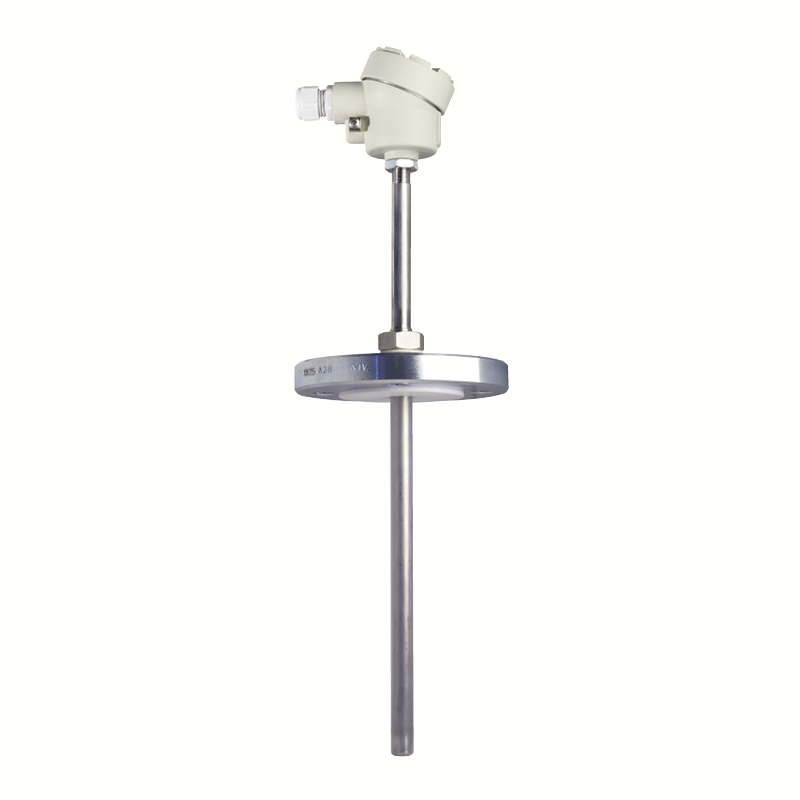

■ −50…+600 °C range ■ Resistance Temperature Detectors ■ “A” or “B” accuracy class ■ 2 or 4-wire versions ■ Fast response sensor version ■ Probe length up to 3 m
