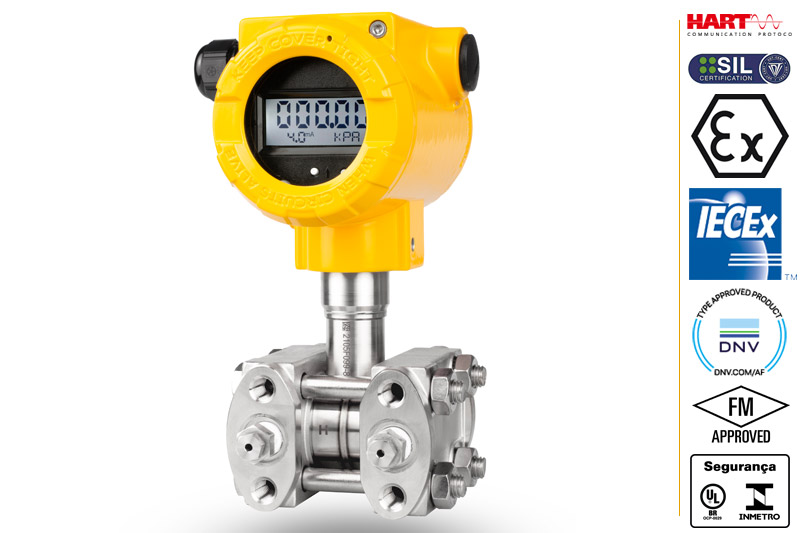

✔ 4…20 mA output signal + HART 5 / HART 7 protocol (special version: 0…20 mA or 0…5 mA output signal + HART 5 protocol) ✔ Display with backlight ✔ Safety version SIL2/SIL3 ✔ Intrinsic safety certificate ATEX, IECEx, FM, CSA(FM), INMETRO ✔ Explosion proof certificate ATEX, IECEx, FM, CSA(FM), INMETRO ✔ Programmable zero range, shift, characteristic and damping ratio with local panel keys ✔ Static pressure limit up to 700bar ✔ Accuracy 0,075% (0,05%, 0,04% on request) ✔ Marine certificate – DNV, BV ✔ Gold plated diaphragms ✔ Wetted parts material 316L/Hastelloy C276
Boiler Level Measurement Solution
Differential pressure transmittersmeasure the difference between two pressures. The feature 4-20 mA + Hart Protocol technology to deliver accurate outputs for Data collection and control devices.
Commonly used in areas of application for boiler application, ballast water treatment and flow measurement. An important accessory to the DP transmitter is the valve manifold.

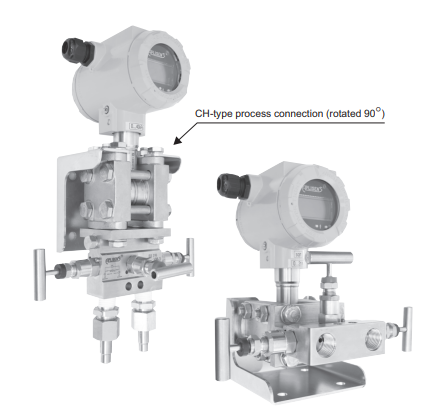

Most DP transmitters come with either a 3 valve manifold or a 5 valve manifold. The valve manifold is used to isolate the DP transmitter from the process for maintenance and calibration & to ensure that the DP transmitter is not over-ranged.
